Home » Leviton L8621-100, Multi Weave Pulling Grip, Rotating Eye, Heavy Duty, Closed Mesh, Standard Length, Galvanized Steel, 0.25''-0.50'' Cable Diameter Range, Breakload is 7000 LBS, Dark Green
Leviton

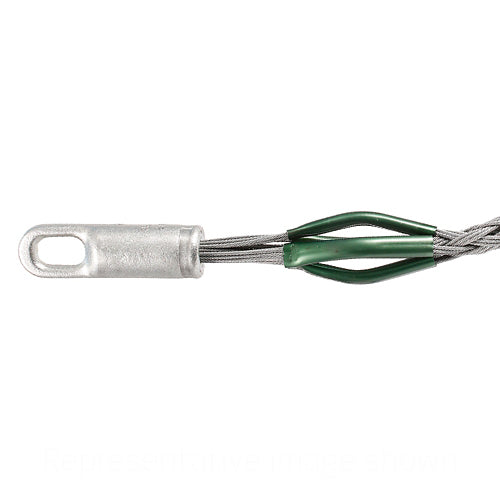

Leviton L8621-100, Multi Weave Pulling Grip, Rotating Eye, Heavy Duty, Closed Mesh, Standard Length, Galvanized Steel, 0.25''-0.50'' Cable Diameter Range, Breakload is 7000 LBS, Dark Green

In stock
SKU: L8621-100
$337.92

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
  • All pulling grip designs are fully tested to meet published break ratings without slipping
Device Type Pulling Grip
Approx. Break Strength 7000LBS
Bale Length 6.3 in (160 mm)
Cable Range 0.25''-0.50''
Duty Heavy
Eye Type Rotating Eye
Mesh Length 28.5''
Mesh Style Closed
Weave Multi Weave
Workload Safety Factor (lbs) 1,400 lbs @ 5:1 (635 kgs @ 5:1)
Mesh Material Galvanized
Certifications UL
Warranty 1-Year Limited
