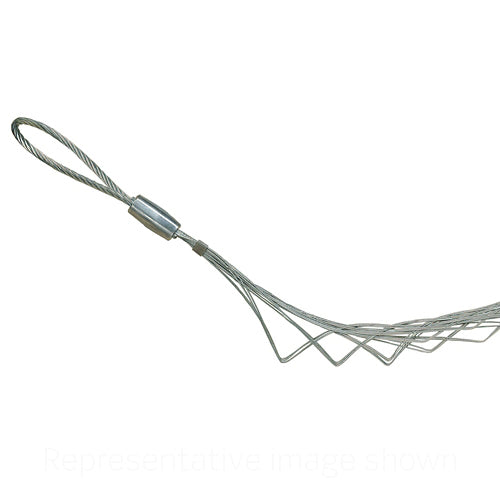

Leviton L8671-100, Single Weave Slack Pulling Grip, Offset Eye, Heavy Duty, Closed Mesh, Standard Length, Galvanized Steel, 0.75''-1.00'' Cable Diameter Range, Breakload is 5600 LBS
Regular price
$155.68
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Pulling grips are reusable devices for pulling bare conductors, insulated wires, synthetic rope, wire rope, and fiber optic cable
- All pulling grip designs are fully tested to meet published break ratings without slipping
| Device Type | Pulling Grip |
| Approx. Break Strength | 5600 LBS |
| Bale Length | 8.9 in (226 mm) |
| Cable Range | 0.75''-1.00'' |
| Duty | Heavy |
| Eye Type | Offset Eye Slack |
| Mesh Length | 18.0'' |
| Mesh Style | Closed |
| Weave | Single Weave |
| Workload Safety Factor (lbs) | 1,867 lbs @ 3:1 (847 kgs @ 3:1) |
| Mesh Material | Galvanized |
| Certifications | UL |
| Warranty | 1-Year Limited |
