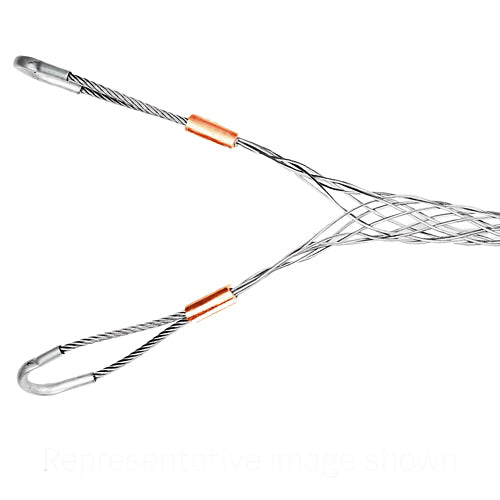

Leviton L9715-100, Heavy Duty Support Grip, Double ''U'' Eye, Single Weave, Closed Mesh, Stainless Steel, 2.00''-2.50'' Cable Diameter Range, Breakload is 8940 LBS
Regular price
$421.09
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Support, Double Eye, Heavy Duty, Single Weave, Stainless Steel, 2.00"-2.50" Cable Diameter Range - Breakload is 8940 LBS, 9.0" Eye Length, 28.0" Mesh Length
- Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
- Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
- Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables
| Device Type | Support Grip |
| Approx. Break Strength | 8940 LBS |
| Bale Length | 9 in (229 mm) |
| Weave | Single Weave |
| Cable Range | 2.00''-2.50'' |
| Duty | Heavy |
| Eye Type | Double |
| Mesh Length | 28.0'' |
| Mesh Style | Closed |
| Workload Safety Factor (lbs) | 500 lbs (226.8 kg) |
| Mesh Material | Stainless Steel |
| Certifications | UL |
| Warranty | 1-Year Limited |
