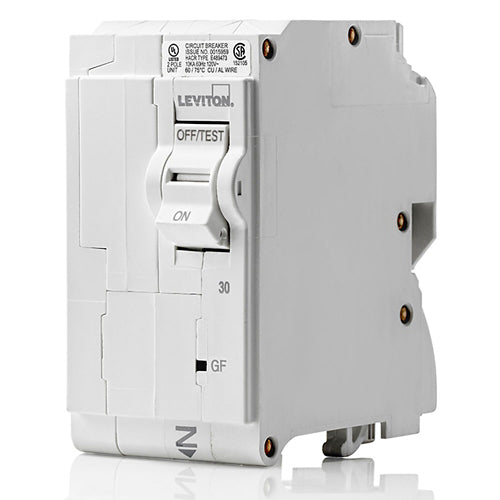

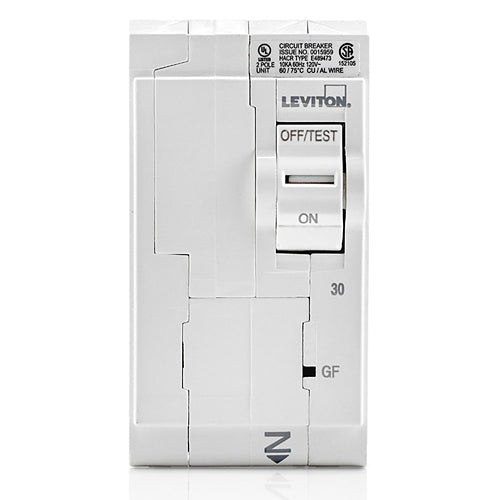

Leviton LB230-G, 30A 2-Pole GFCI Branch Circuit Breaker with Hydraulic Magnetic Trip Technology and Plug-On Installation, 120/208 and 120/240 VAC, 10kA Short-Circuit Rating
Regular price
$237.81
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- Precision trip technology ensures that the main breaker operates as intended from -40°C to 85°C (-40°F to 185°F) without re-rating
- Leviton GFCI, AFCI and dual-function circuit breakers feature patented reset lockout technology, and will not reset if ground or arc fault protection is comprimised
-
LEDs communicate trip condition and type of fault, and remain illuminated even when tripped
*Designed for Leviton Load Centers only
| Type | GFCI |
| Amperage | 30 A |
| Breaker Technology | Hydraulic Magnetic |
| Pole | 2 |
| Short Circuit Current Rating | 10 KA |
| Voltage | 120/208 and 120/240 VAC |
| Operating Temperature | -40°C to 85°C |
| Certifications | UL, FCC, RoHS, EMC |
| Warranty |
Limited 10-Year Warranty (Mechanical)
Limited 2-Year Warranty (Electronic)
|
