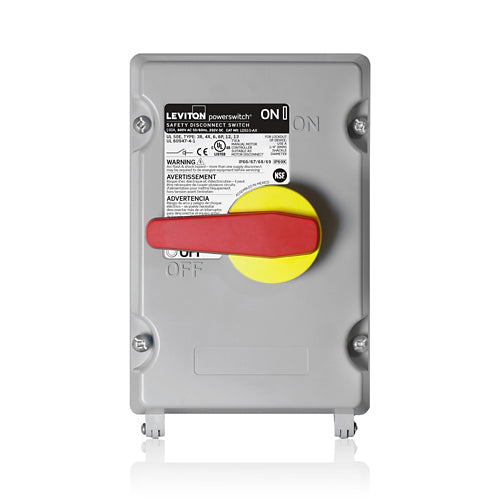

Leviton LDS10-AX, Non-Fused Powerswitch Safety Disconnect Switch, 100 Amp, 600 Volt, Non-Metallic Enclosure
Regular price
$656.13
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- PBT enclosure resists impact, abuse and corrosion
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown, IP66, IP67, IP68, IP69 and IP69K, UL 50E Type 3R, 4, 4X, 6P, 12, 13
- Overmold handle provides firm grip, durability and withstands washdown
- Handle accommodates 3 padlocks for OSHA compliant lockout/tagout
- 200kA SCCR when protected by Type J Fuse
- NSF Certified for hygiene requirements in food & beverage processing
- Operating temperature ranges from -40 °C to 75 °C (65°C for Inform Units)
- Captive, triple head cover screws constructed of stainless steel
- Available with flat or curve top, with or without Inform™ Technology
| Device Type | Safety Disconnect Switches |
| Amperage | 100 A |
| Voltage |
600 VAC
|
| Enclosure Material | PBT+PC |
| Enclosure Screws | Stainless Steel |
| Gasket | Silicone Rubber |
| Handle Material | PBT+PC with TPE Overmold |
| Mounting Feet | PBT+PC |
| Terminal Accom. | 8 - 1/0 AWG |
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM, CE, NSF |
| Warranty | 3-Year Limited |
