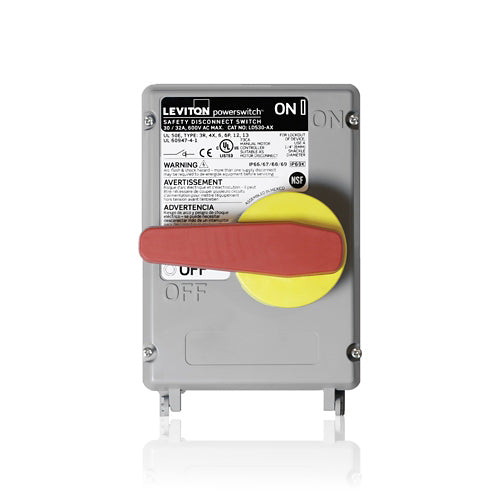

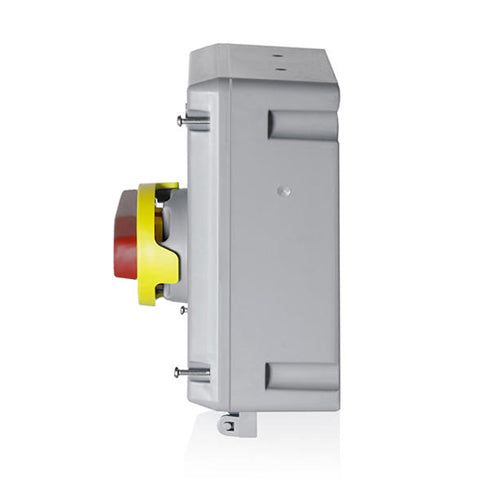

Leviton LDS30-AC, Non-Fused Powerswitch Safety Disconnect Switch with Factory Installed Auxiliary Contact, 30/32 Amp, 600 Volt, Non-Metallic Enclosure
Regular price
$411.60
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- PBT enclosure resists impact, abuse and corrosion
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
- NSF Certified for hygiene requirements in food & beverage processing
| Device Type | Safety Disconnect Switches |
| Feature | Factory Installed Auxiliary Contact |
| Amperage | 30/32 A |
| Voltage |
600 VAC
|
| Enclosure Material | PBT+PC |
| Enclosure Screws | Stainless Steel |
| Gasket | Silicone Rubber |
| Handle Material | PBT+PC with TPE Overmold |
| Mounting Feet | PBT+PC |
| Terminal Accom. | 18 - 8 AWG |
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM, CE, NSF |
| Warranty | 3-Year Limited |
