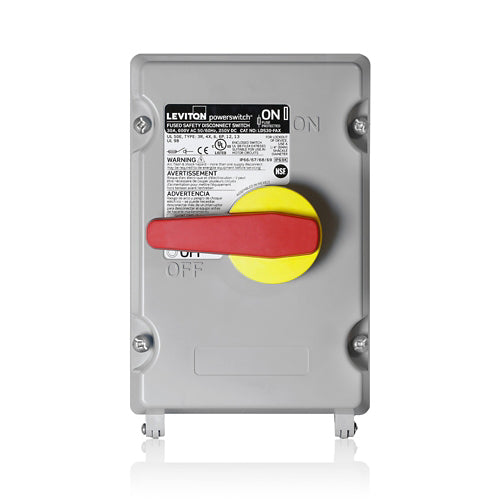

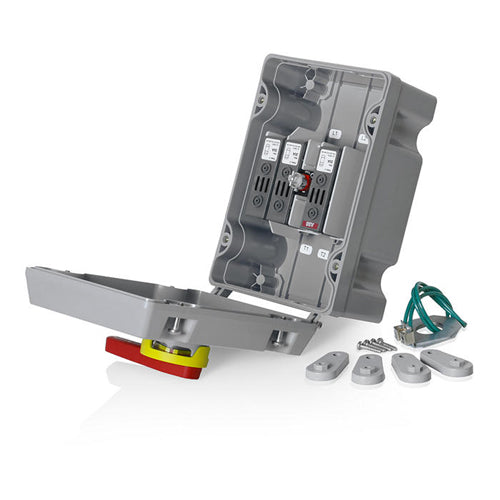

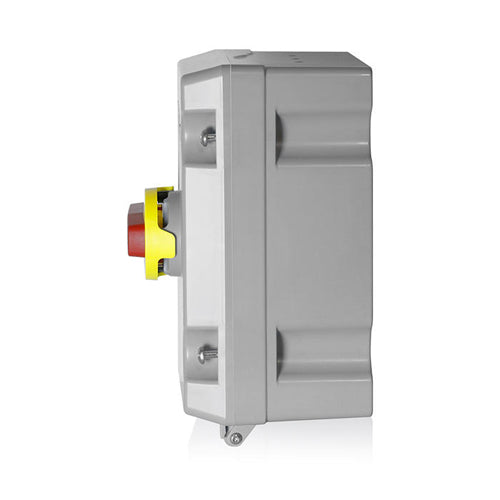

Leviton LDS30-FAX, Fused Powerswitch Safety Disconnect Switch, 30/32 Amp, 600 Volt, Non-Metallic Enclosure
Regular price
$1,095.44
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- PBT enclosure resists impact, abuse and corrosion
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown, IP66, IP67, IP68, IP69 and IP69K, UL 50E Type 3R, 4, 4X, 6P, 12, 13
- Overmold handle provides firm grip, durability and withstands washdown
- Handle accommodates 3 padlocks for OSHA compliant lockout/tagout
- 200kA SCCR when protected by Type J Fuse
- NSF Certified for hygiene requirements in food & beverage processing
- Operating temperature ranges from -40 °C to 75 °C (65°C for Inform Units)
- Captive, triple head cover screws constructed of stainless steel
- Available with flat or curve top, with or without Inform™ Technology
| Device Type | Safety Disconnect Switches |
| Amperage | 30/32 A |
| Voltage |
600 VAC
|
| Enclosure Material | PBT+PC |
| Enclosure Screws | Stainless Steel |
| Gasket | Silicone Rubber |
| Handle Material | PBT+PC with TPE Overmold |
| Mounting Feet | PBT+PC |
| Terminal Accom. | 18 - 8 AWG |
| Ingress Protection | NEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM, CE, NSF |
| Warranty | 3-Year Limited |
