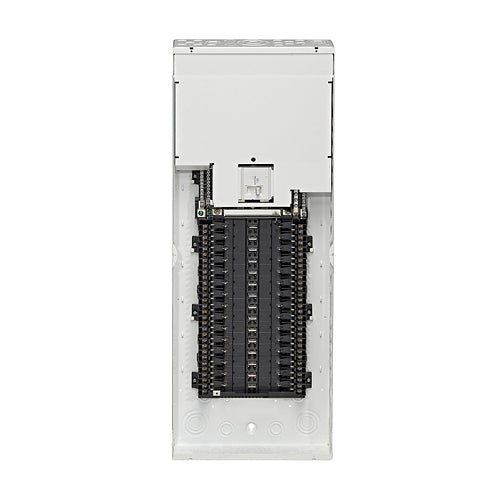

Leviton LP315-BDC, Indoor Load Center with 150A Main Circuit Breaker Factory Installed, 30 Spaces, NEMA 1 Rated, Includes Enclosure and Door, Designed for Use in Canada
Regular price
$247.39
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- All Leviton Load Centers come standard equipped with tin plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Features a white, powder coated finish for a sleek, modern appearance
*For applications up to 60A when using copper wire; or 50A when using aluminum wire, Designed for Leviton Circuit Breakers
| Type | Indoor Without Window |
| Type of Load Center | Main Breaker |
| Color | White |
| Amperage | 150 A |
| Short Circuit Current Rating | 22 KA |
| Spaces / Circuits | 30 / 30 |
| Voltage | 120/240 VAC |
| Busbar Material | Copper, Bright Tin-Plated |
| Busbar Rating | 225A |
| Enclosure Material | Galvanized Steel, White Powder Coat |
| Ground Connection | 4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | 3 AWG - 300 MCM Cu/Al |
| Dimensions | 37'' H x 14.25'' W x 4'' D / 39'' H x 16.25'' W |
| NEMA Enclosure Type | NEMA 1 Indoor |
| Operating Temperature | -40°C to 70°C |
| Certifications | UL, CSA |
| Warranty |
10-Year Limited
|
