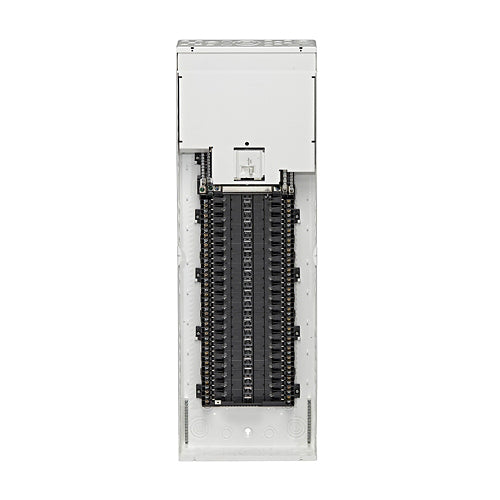

Leviton LP420-BDC, Indoor Load Center with 200A Main Circuit Breaker Factory Installed, 42 Spaces, NEMA 1 Rated, Includes Enclosure and Door, Designed for Use in Canada
Regular price
$341.12
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- All Leviton Load Centers come standard equipped with tin plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Features a white, powder coated finish for a sleek, modern appearance
*For applications up to 60A when using copper wire; or 50A when using aluminum wire, Designed for Leviton Circuit Breakers
| Type | Indoor Without Window |
| Type of Load Center | Main Breaker |
| Color | White |
| Amperage | 200 A |
| Short Circuit Current Rating | 22 KA |
| Spaces / Circuits | 42 / 42 |
| Voltage | 120/240 VAC |
| Busbar Material | Copper, Bright Tin-Plated |
| Busbar Rating | 225A |
| Enclosure Material | Galvanized Steel, White Powder Coat |
| Ground Connection | 4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | 3 AWG - 300 MCM Cu/Al |
| Dimensions | 43'' H x 14.25'' W x 4'' D / 45.3'' H x 16.25'' W |
| NEMA Enclosure Type | NEMA 1 Indoor |
| Operating Temperature | -40°C to 70°C |
| Certifications | CSA, UL |
| Warranty |
10-Year Limited
|
