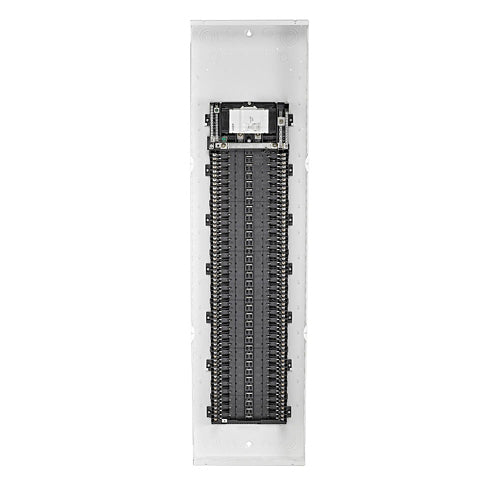

Home » Leviton LP620-BDC, Indoor Load Center with 200A Main Circuit Breaker Factory Installed, 66 Spaces, NEMA 1 Rated, Includes Enclosure and Door, Designed for Use in Canada
Leviton

Leviton LP620-BDC, Indoor Load Center with 200A Main Circuit Breaker Factory Installed, 66 Spaces, NEMA 1 Rated, Includes Enclosure and Door, Designed for Use in Canada

In stock
SKU: LP620-BDC
$521.22
Ampere rating
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

  • Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
  • All Leviton Load Centers come standard equipped with tin plated copper bussing
  • Notches stamped into the enclosure for cable ties promote secure and neat wiring
  • Features a white, powder coated finish for a sleek, modern appearance

*Designed for Leviton Circuit Breakers

Type Indoor Without Window
Type of Load Center Main Breaker
Color White
Amperage 200 A
Short Circuit Current Rating 22 KA
Spaces / Circuits 66 / 66
Voltage 120/240 VAC
Busbar Material Copper, Bright Tin-Plated
Busbar Rating 225A
Enclosure Material Galvanized Steel, White Powder Coat
Ground Connection 4 AWG - 2/0 AWG Cu/Al
Supply Connections 3 AWG - 300 MCM Cu/Al
NEMA Enclosure Type NEMA 1 Indoor
Operating Temperature -40°C to 70°C
Certifications CSA, UL
Warranty
10-Year Limited
