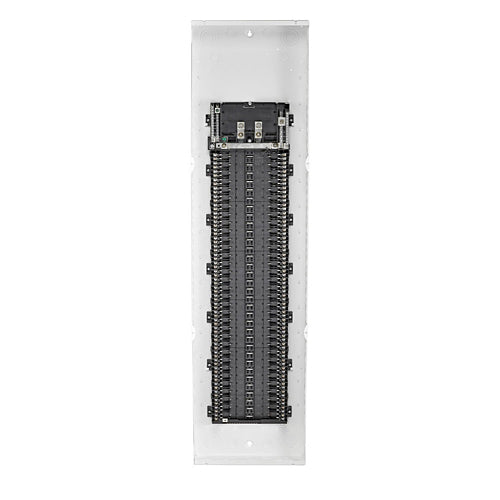

Leviton LP622-LDC, Indoor Load Center with 225A Main Lugs Factory Installed, 66 Spaces, NEMA 1 Rated, Includes Enclosure and Door, Designed for Use in Canada
Regular price
$672.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- All Leviton Load Centers come standard equipped with tin plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Features a white, powder coated finish for a sleek, modern appearance
*Per CEC requirements, service entrance compartment covers are not included with main lugs load centers
*Designed for Leviton Circuit Breakers
| Type | Indoor Without Window |
| Type of Load Center | Main Lug |
| Color | White |
| Amperage | 225 A |
| Short Circuit Current Rating | 10kA |
| Spaces / Circuits | 66 / 66 |
| Voltage | 120/240 VAC |
| Busbar Material | Copper, Bright Tin-Plated |
| Busbar Rating | 225A |
| Enclosure Material | Galvanized Steel, White Powder Coat |
| Ground Connection | 4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | 6 AWG - 300 MCM Cu/Al |
| NEMA Enclosure Type | NEMA 1 Indoor |
| Operating Temperature | -40°C to 70°C |
| Certifications | UL, CSA |
| Warranty |
10-Year Limited
|
