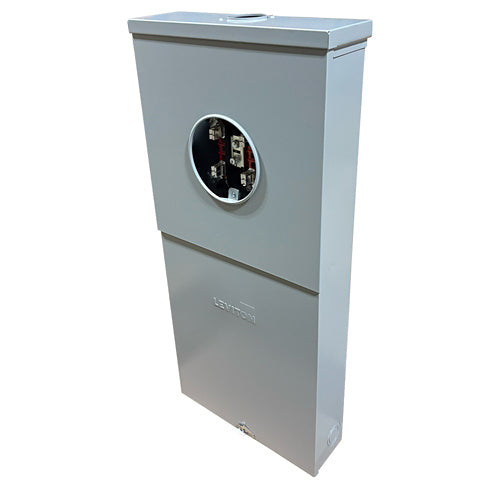

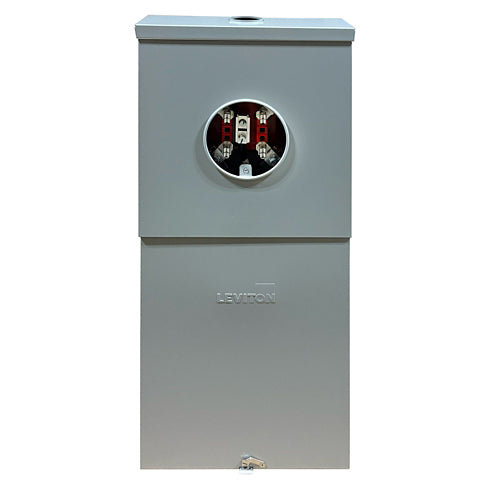

Leviton LS810-BRC, Outdoor Meter Main Combo with 100A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated, Includes Enclosure, Ring-Type Door, and Feed-Thru Lugs, Designed for Use in Canada
Regular price
$742.96
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- All Leviton Load Centers come standard equipped with tin plated copper bussing
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
*Designed for Leviton Circuit Breakers
| Type | Outdoor |
| Type of Load Center | Meter Main |
| Color | Gray |
| Amperage | 100 A |
| Short Circuit Current Rating | 22 KA |
| Spaces / Circuits | 8 / 8 |
| Voltage | 120/240 VAC |
| Applications | Overhead and Underground |
| Meter base neutral connection | Isolated |
| Screw type meter ring | Included |
| Busbar Material | Copper, Bright Tin-Plated |
| Busbar Rating | 225A |
| Enclosure Material | Galvanized Steel, Gray Baked Enamel |
| Ground Connection | 4 AWG - 2/0 AWG Cu/Al |
| Supply Connections | 6 AWG – 350 MCM |
| Dimensions | 36'' H x 16.6'' W x 5.2''D |
| NEMA Enclosure Type | NEMA 3R Outdoor |
| Operating Temperature | -40°C to 70°C |
| Certifications | UL, CSA |
| Warranty |
10-Year Limited
|
