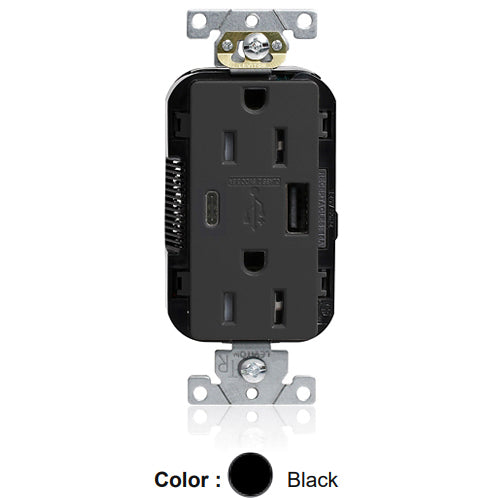

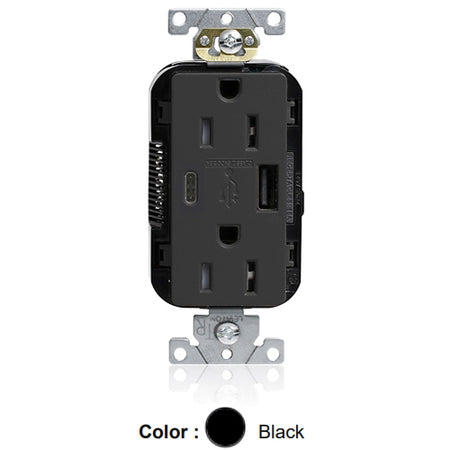

Leviton M56AC-E, Lev-Lok Combination Decora Straight Blade Duplex Receptacle, Dual-Port USB Type A/C Charger, Commercial Specification Grade, Tamper-Resistant, 15A 125V, NEMA 5-15R, 2-Pole, 3-Wire, Modular Terminals, Black

In stock
SKU: M56AC-E
Regular price $80.64
Ampere & voltage rating
Nema rating
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Lev-Lok employs a simple twist and lock wiring module to provide a safe and secure connection. These devices are pre-wired for 3x faster installations and 5x faster swap outs than traditional wiring. The speed and ease of Lev-Lok allows for optimal time, labor, and cost savings.

  • One Type A and one Type C USB port with a combined total of 5.1A of charging power
  • Type A USBs are the most recognized and commonly used USB port, used in most desktops, laptops, and tablets, while Type C USBs are emerging as the latest standard for charging and transferring data
  • Common applications: health care facilities, lobbies & waiting rooms, airports, hospitality, and educational institutions
  • For use with MSTWL Lev-Lok wiring modules only, modules sold separately
Device Type Combination Device
Grade Commercial Specification Grade
Feature Smooth Face, Tamper-Resistant
Description One Type A & One Type C USB Port
Color Black
NEMA 5-15R
Amperage 15 A
Voltage 125 VAC
Pole 2
Wire 3
Grounding Self-Grounding
Single Port Charging Power 15W
Total Charging Power 25W
USB Cable Compatible Type A and Type C
USB Charger 5.1A
Body Material PBT
Face Material Thermoplastic
Ground Clips Brass
Mounting Strap Galvanized Steel
Strap Construction Through-Strap
Termination Modular
Operating Temperature Maximum Continuous 40°C, Minimum -10°C (w/o impact)
Certifications UL, CSA, NOM
Warranty 2-Year Limited
