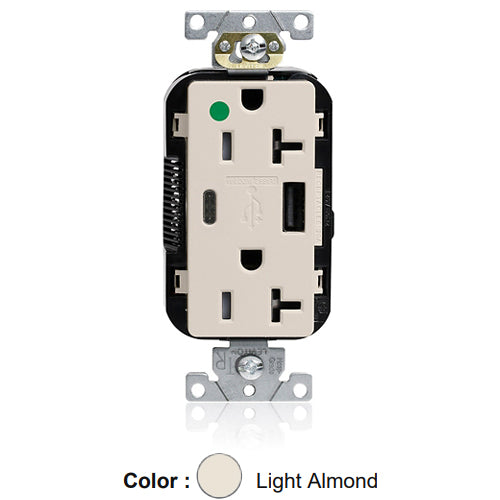

Leviton M58AC-HGT, Lev-Lok Combination Decora Straight Blade Duplex Receptacle, Dual-Port USB Type A/C Charger, Heavy-Duty Hospital Grade, Tamper-Resistant, 20A 125V, NEMA 5-20R, 2-Pole, 3-Wire, Modular Terminals, Light Almond
Regular price
$94.08
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Lev-Lok employs a simple twist and lock wiring module to provide a safe and secure connection. These devices are pre-wired for 3x faster installations and 5x faster swap outs than traditional wiring. The speed and ease of Lev-Lok allows for optimal time, labor, and cost savings.
- One Type A and one Type C USB port with a combined total of 5.1A of charging power
- Type A USBs are the most recognized and commonly used USB port, used in most desktops, laptops, and tablets, while Type C USBs are emerging as the latest standard for charging and transferring data
- Common applications: health care facilities, lobbies & waiting rooms, airports, hospitality, and educational institutions
- For use with MSTWL Lev-Lok wiring modules only, modules sold separately
| Device Type | Combination Device |
| Grade | Heavy-Duty Hospital Grade |
| Feature | Smooth Face, Tamper-Resistant |
| Description | One Type A & One Type C USB Port |
| Color | Light Almond |
| NEMA | 5-20R |
| Amperage | 20 A |
| Voltage | 125 VAC |
| Pole | 2 |
| Wire | 3 |
| Grounding | Self-Grounding |
| Single Port Charging Power | 15W |
| Total Charging Power | 25W |
| USB Cable Compatible | Type A and Type C |
| USB Charger | 5.1A |
| Body Material | PBT |
| Face Material | Thermoplastic |
| Ground Clips | Brass |
| Mounting Strap | Galvanized Steel |
| Strap Construction | Through-Strap |
| Termination | Modular |
| Operating Temperature | Maximum Continuous 40°C, Minimum -10°C (w/o impact) |
| Certifications | UL, CSA, NOM |
| Warranty | 2-Year Limited |
