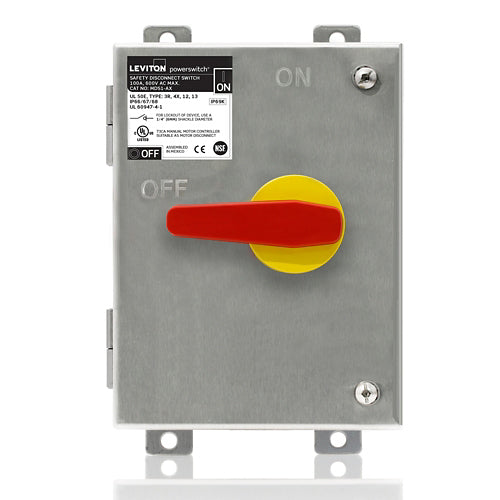

Leviton MDS1-AX, Non-Fused PowerSwitch Safety Disconnect Switch, 100 Amp, 600 Volt, 304 Stainless Steel Enclosure
Regular price
$1,460.59
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications. Built to withstand the rigors of these harsh environments, these devices address the needs of safety, washdown, reduced downtime and code compliance, and are backed by a leading 3-year warranty.
- Type 304 stainless steel resists heat, corrosion and abuse
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown, IP66, IP67, IP68 and IP69K, UL 50E Type 3R, 4X, 12, 13
- Overmold handle provides firm grip, durability and withstands washdown
- Slope Top versions feature a 15-degree slope towards the wall that pushes water and debris away from front of device

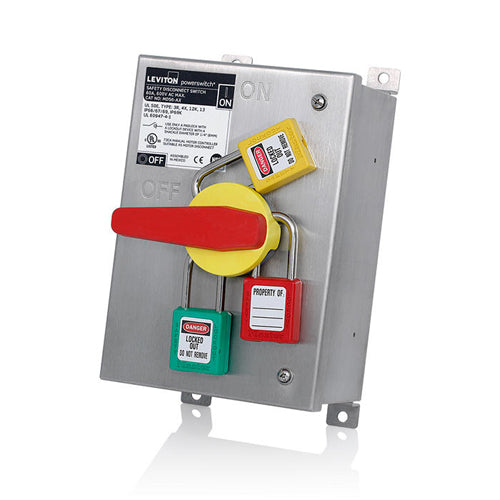

- Handle accommodates 3 padlocks for OSHA compliant lockout/tagout

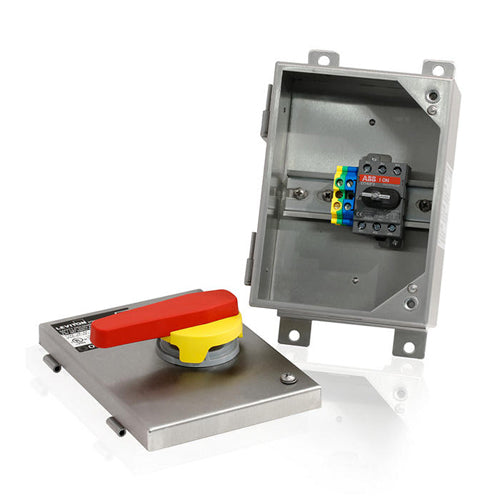

- Removable cover door makes installation and servicing simple and quick
- NSF Certified for hygiene requirements in food & beverage processing
- 3/4'' standoff from mounting surface allows or easy cleaning
| Device Type | Safety Disconnect Switches |
| Grade | Industrial Grade |
| Amperage | 100 A |
| Voltage |
600 VAC
|
| Enclosure Material | 16 Gauge Type 304 Stainless Steel |
| Gasket | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
| Ingress Protection | NEMA /UL 50E Type 3R, 4X, 12, 13 • IP66, IP67, and IP68 • IP69K (per ISO 20653) |
| Mounting Feet | 14 Gauge Type 304 Stainless Steel |
| Terminal Accom. | 8 – 1/0 AWG |
| Operating Temperature | -40°C to 75°C |
| Certifications | cULus, NOM, CE |
| Warranty | 3-Year Limited |
