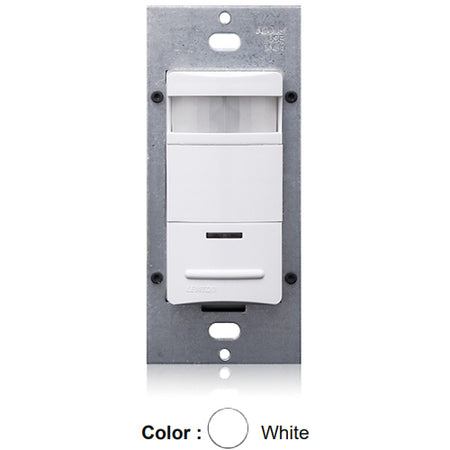

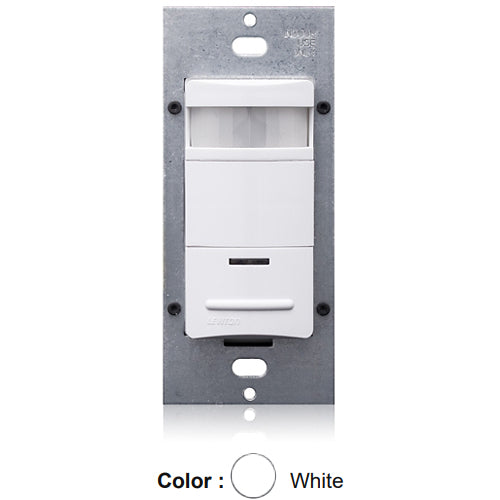

Leviton MDS15-IDW, Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor, Lev-Lok Model, 20A, 120/277VAC, 180° Field-of-View, 2100 Sq.Ft. Coverage, White
Regular price
$161.82
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LevLok PIR wallbox occupancy sensor lighting control, Single Relay, photocell controlled, Low profile, 180 degree field of view, 2100 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 50/60Hz, AutoON/ManualON selectable, CEC Title 20/24 Compliant, UL Listed, RoHS Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | White |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Incandescent: 800W @ 120V Fluorescent: 120VA @120V, 2700VA @ 277V Motor: 1/4HP @ 120V |
| Size | Height 4.06'' (103.12mm), Width 1.75'' (44.45mm), Depth 2.29'' (58.16mm) + LEV-LOK 0.40'' (10.2mm), Install Height 2.67'' (67.82mm), Install Depth 1.83'' (46.48mm) + LEV-LOK 0.40'' (10.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Blue, Ground-Green, Neutral-White |
| Application | Small offices, Heavier loads, Private restrooms, Lounges, Storage areas, Classrooms, Conference rooms |
| Certifications | FCC, NOM, Title 24, ASHRAE 90.1 |
| Warranty | 5-Year Limited |
