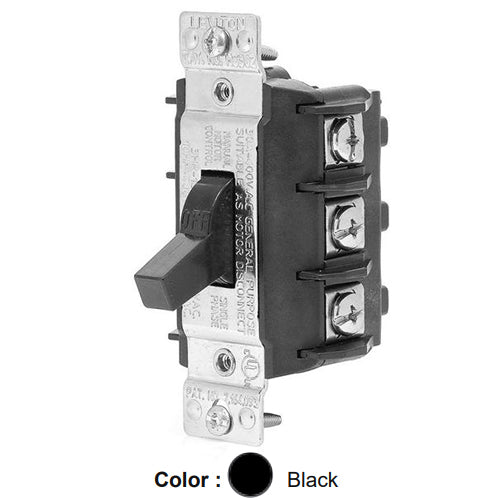

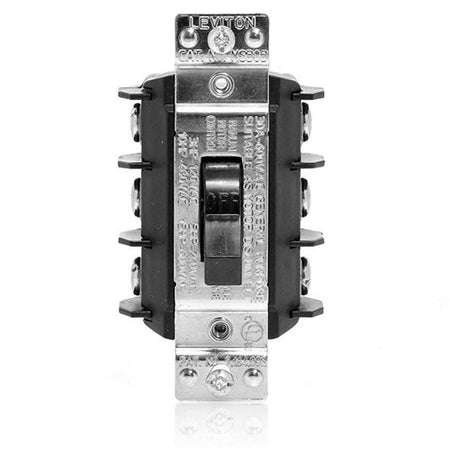

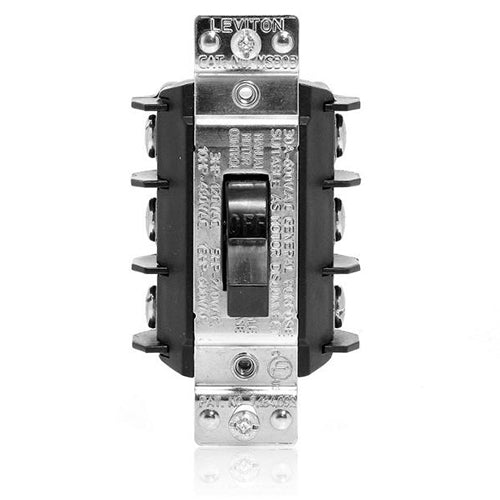

Leviton MS303-DS, Three-Phase Single Throw AC Manual Motor Controller Component Switch, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, 30 Amp, 600 Volt, 3-Pole, Non-Grounding, Back & Side Wiring, Black
Regular price
$71.66
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
| Grade | Industrial Grade |
| Color | Black |
| Amperage | 30 A |
| Voltage |
600 VAC
|
| Phase | 3 |
| Pole | 3 |
| Grounding | Non-Grounding |
| Toggle Type (Color) | Standard |
| HP Rating | 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V |
| Base Material | Thermoplastic Polyester |
| Contact Material | Silver Alloy |
| Strap Material | Nickel-Plated Brass |
| Termination | Back & Side |
| Operating Temperature | -40°C to 60°C |
| Certifications | UL, NOM |
| Warranty | 10-Year Limited |
