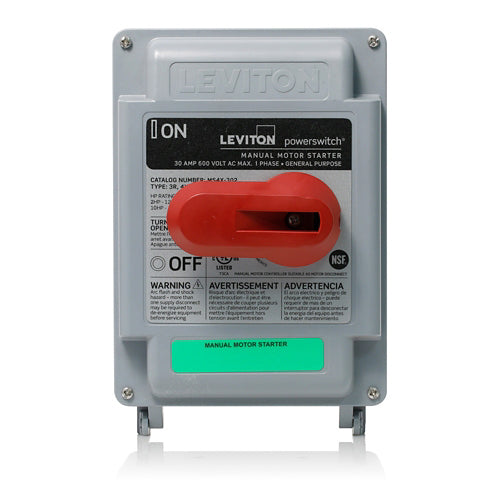

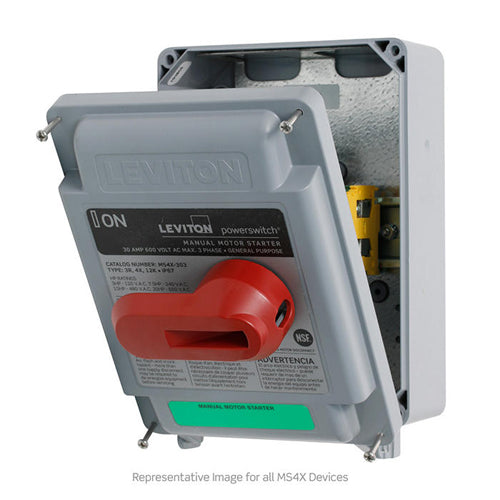

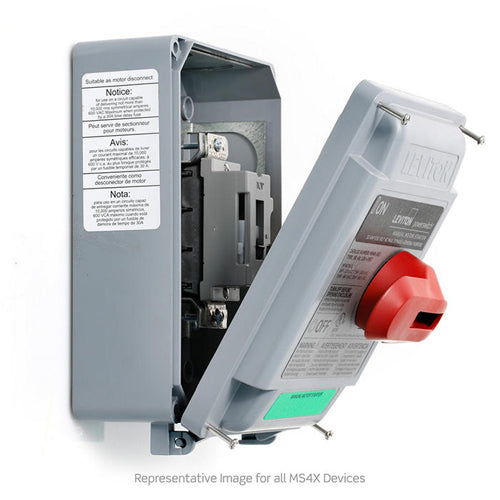

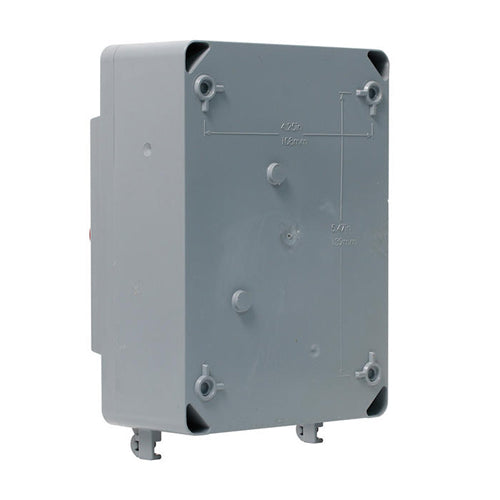

Leviton MS4X-303, Three-Pole Non-Fused AC Manual Motor Controller Enclosed Switch, Suitable as Motor Disconnect, Pistol Grip Toggle, 30 Amp, 600 Volt, Type 4X Non-Metallic Enclosure, NSF Certified
Regular price
$134.82
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
**4X Enclosures are high impact Valox® in wateright enclosure rated 4X, 3R, 12K and IP67
Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
| Device Type | Enclosed Switch |
| Grade | Industrial Grade |
| Amperage | 30 A |
| Voltage |
600 VAC
|
| Phase | 3 |
| Pole | 3 |
| Grounding | Non-Grounding |
| Toggle Type | Pistol Grip |
| Enclosure Rating | Type 4X |
| HP Rating | 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V |
| Contacts | Silver-Cadmium 0.031 Thick |
| Enclosure Cover Material | Thermoplastic Polyester |
| Terminal Screws | Nickel-Plated Brass 10-32 |
| Termination | Switch Mechanism Back & Side |
| Operating Temperature | -40°C to 60°C |
| Certifications | UL, NOM, NSF |
| Warranty | 2-Year Limited |
