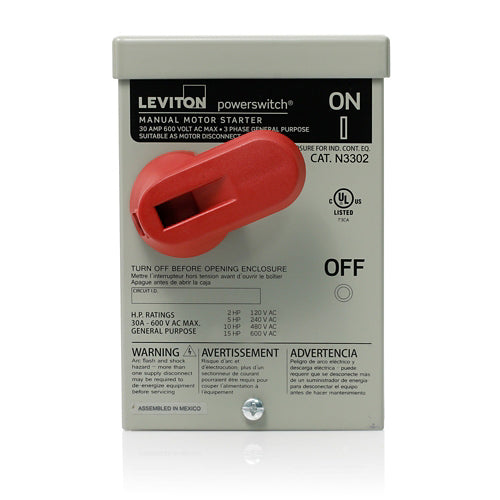

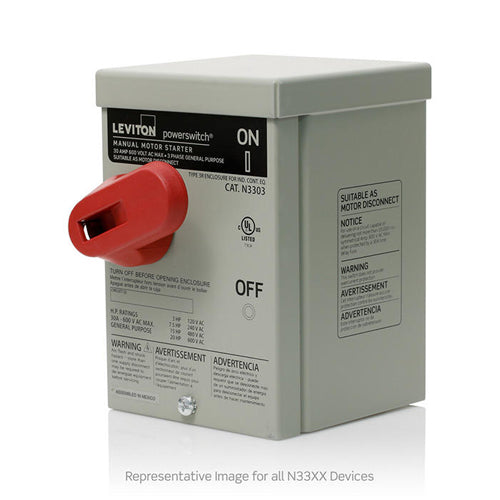

Leviton N3302-DS, Double-Pole AC Manual Motor Controller Enclosed Switch, Suitable as Motor Disconnect, Pistol Grip Toggle, Industrial Grade, 30 Amp, 600 Volt, Type 3R Metal Enclosure, Back & Side Wired, Gray
Regular price
$70.11
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
| Device Type | Enclosed Switch |
| Grade | Industrial Grade |
| Color | Gray |
| Amperage | 30 A |
| Voltage |
600 VAC
|
| Phase | 1 |
| Pole | 2 |
| Grounding | Grounded To Enclosure |
| Toggle Type | Pistol Grip |
| Enclosure Rating | Type 3R |
| HP Rating | 2HP-120V, 5HP-240V, 10HP-480V, 15HP-600V |
| Base Material | Thermoplastic Polyester |
| Enclosure Cover Material | Steel |
| Strap Material | Nickel-Plated Brass |
| Termination | Back & Side |
| Operating Temperature | -40°C to 60°C |
| Certifications | UL, NOM |
| Warranty | 10-Year Limited |
