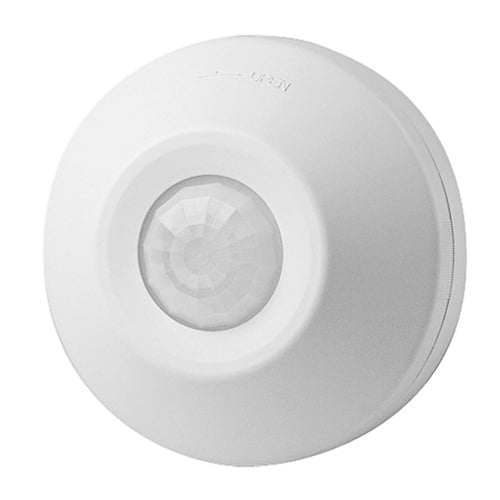

Leviton ODC0S-I7W, Self-Contained Passive Infrared (PIR) Ceiling Mount Occupancy Sensor and Switching Relay, 277 VAC, 530 Sq.Ft. Coverage, White
Regular price
$245.36
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor, 8'-10' ceiling mount, self contained. Passive infrared, 360 degree, time adjustment (20s-15m), 277V, CEC Title 20/24 compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 530 Sq. Ft |
| Pattern | 360° |
| Color | White |
| Voltage | 277 VAC |
| Frequency | 60Hz |
| Load Rating | Incandescent: 1000 Watts, Fluorescent: 2700 VA |
| Power Consumption | 1.89 Watts |
| Mounting Type | Ceiling Mount |
| Neutral Wire Connection | Required |
| Size | Width 4.3'' (109.2mm), Height above Surface 2.15'' (54.6mm) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Storage Areas, Copy Rooms, Small Bathrooms, Utility Closets, Retrofit, Small Spaces without wall switches |
| Wiring | Line - black, Neutral - white, Load - blue |
| Certifications | CSA, Title 24, USMCA |
| Warranty | 5-Year Limited |
