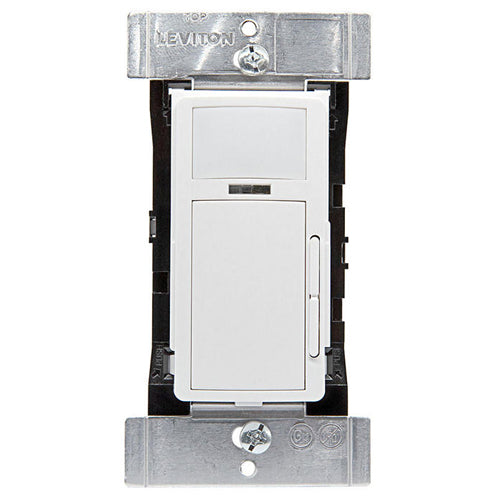

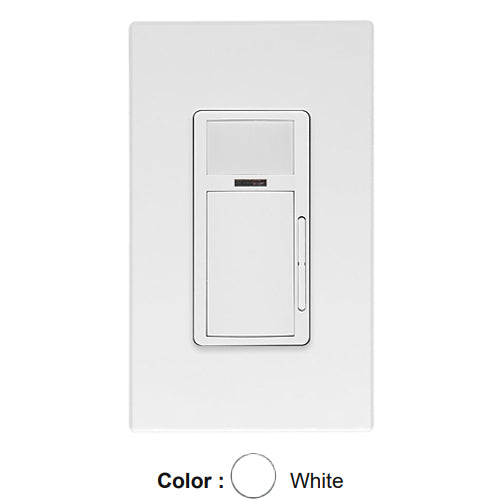

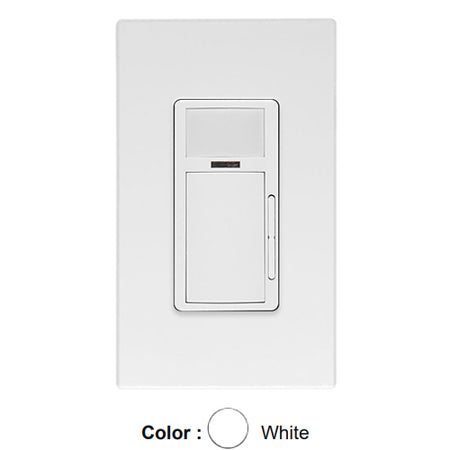

Leviton ODP10-I1W, Smart Passive Infrared (PIR) 1000W Dimming Wallbox Sensor, Commercial Grade, Occupancy/Vacancy, 120VAC, Neutral Wire Required, 1100 Sq.Ft. Coverage, White
Regular price
$152.88
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Smart Sensor, PIR, Wallbox, 1000W Dimmer, App configurable; Auto-ON/Auto-OFF or Manual-ON/ Auto-OFF, neutral wire required, 120VAC, 50/60Hz, Commercial Grade, White.
| Product Type | Smart Sensor with Dimming |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy / Vacancy |
| Feature | App Configurable |
| IP Rating | IP10 |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 1100 Sq. Ft |
| Pattern | 180° |
| Color | White |
| Voltage | 120 VAC |
| Frequency | 50/60Hz |
| Input Current | 120V: Standby: 0.2W Max: 0.5W+Load Current |
| Load Rating |
LED, CFL, Electronic Ballasts @ 120V 100W Magnetic Ballasts @ 120V 100W Resistive, Tungsten @ 120V 100W Motor @ 120V Not Rated for use |
| Size | Height 4.13'' (104.9mm), Width 2.12'' (53.95mm), Depth 1.86'' (47.25mm), Install Depth 1.42'' (36.22mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Required |
| Application | Offices, Lobbies, Small Meeting Rooms, Retrofit Applications |
| Operating Temperature | 0°C to 40°C |
| Certifications | IECC, FCC, ICC |
| Warranty | 5-Year Limited |
