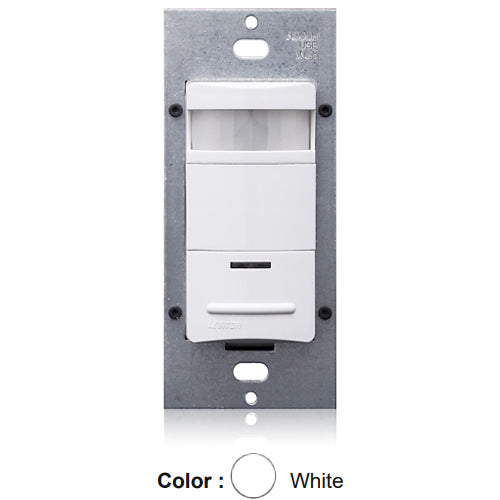

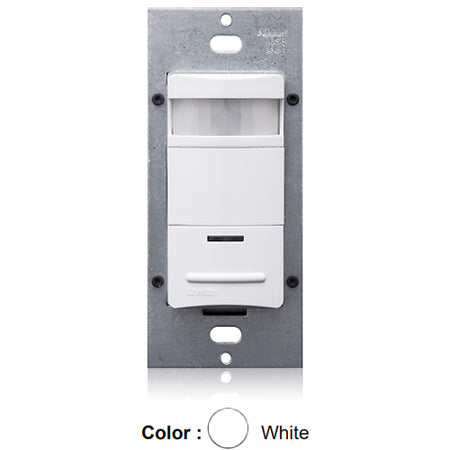

Leviton ODS06-IDW, Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor, Commercial Grade, Single-Pole, 120/277 VAC, 180° Field-of-View, 1600 Sq.Ft. Coverage, White
Regular price
$57.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Passive Infrared wallbox occupancy sensor, Single Relay, photocell controlled, Low profile, 180 degree field of view, 1600 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 50/60Hz, AutoON/ManualON selectable, CEC Title 24 Compliant, UL Listed, RoHS Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 1600 Sq. Ft |
| Pattern | 180° |
| Color | White |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Incandescent: 600W @ 120V. Fluorescent: 800VA @ 120V, 1500VA @ 277V. Motor: 1/4 HP @ 120V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Small offices, Conference rooms, Lounges, Classrooms |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Line-Black, Load-Blue, Ground-Green, No Neutral required |
| Certifications | cULus, FCC, ASHRAE 90.1, NOM |
| Warranty | 5-Year Limited |
