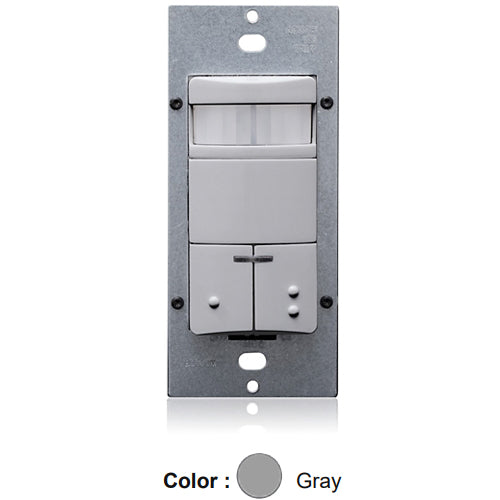

Leviton ODS0D-IDG, Decora Dual Relay Wall Switch Passive Infrared (PIR) Occupancy Sensor with Self-Adaptive Technology, Commercial Grade, Single-Pole, 180° Field-of-View, 2100 Sq.Ft. Coverage, Gray
Regular price
$130.59
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- AutoON/AutoOFF PIR Occupancy Sensor (ManualON/AutoOFF selectable) lighting control, Vandal resistant PIR lens, Manual 2 Pole Wall Switches. RobustDual Latching 10A Relays, No-Neutral wire required.
- Adjustable Service Switch: OFF/AUTO/ON (Keep in AUTO), 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side).
- Adjustable time delay (in Adapting mode: 30s, 5/10/20m, Non-Adapting mode: 5/10/20/30m), Walk-through feature, Audible Beep Warn. Light Sensor (Photocell) included for Ambient Light Hold-Off feature.
- Daylighting: Classroom Mode (operates both relays) and Conference Room Mode (operates 2 relay after). CEC Title 20/24 compliant. Wall plate sold separately.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Relay Type | Dual Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole, Dual Relay |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | Gray |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red |
| Certifications | cUL/US, Title 24, FCC |
| Warranty | 5-Year Limited |
