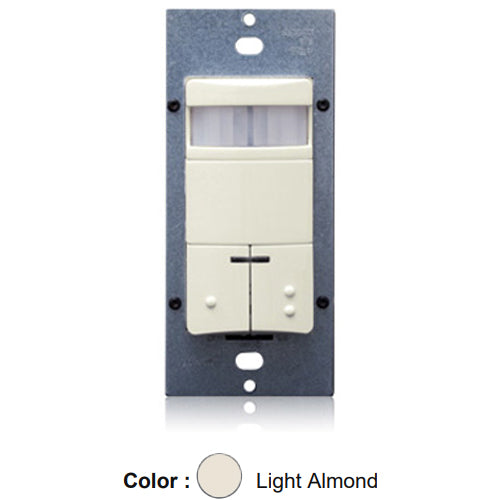

Leviton ODS0D-IDT, Decora Dual Relay Wall Switch Passive Infrared (PIR) Occupancy Sensor with Self-Adaptive Technology, Commercial Grade, Single-Pole, 180° Field-of-View, 2100 Sq.Ft. Coverage, Light Almond
Regular price
$130.59
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- AutoON/AutoOFF PIR Occupancy Sensor (ManualON/AutoOFF selectable) lighting control, Vandal resistant PIR lens, Manual 2 Pole Wall Switches. RobustDual Latching 10A Relays, No-Neutral wire required.
- Adjustable Service Switch: OFF/AUTO/ON (Keep in AUTO), 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side).
- Adjustable time delay (in Adapting mode: 30s, 5/10/20m, Non-Adapting mode: 5/10/20/30m), Walk-through feature, Audible Beep Warn. Light Sensor (Photocell) included for Ambient Light Hold-Off feature.
- Daylighting: Classroom Mode (operates both relays) and Conference Room Mode (operates 2 relay after). CEC Title 20/24 compliant. Wall plate sold separately.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Relay Type | Dual Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole, Dual Relay |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | Light Almond |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Primary Relay Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V Secondary Relay Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red |
| Certifications | cUL/US, Title 24, FCC |
| Warranty | 5-Year Limited |
