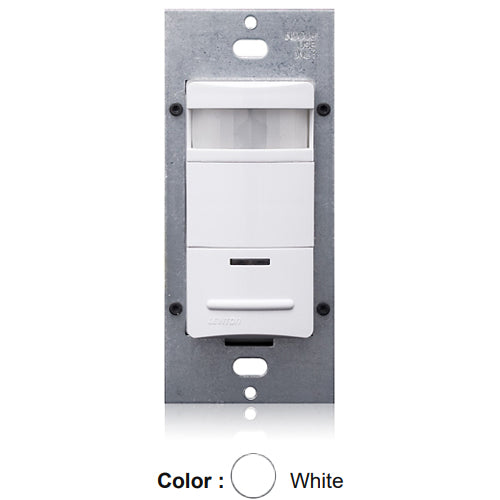

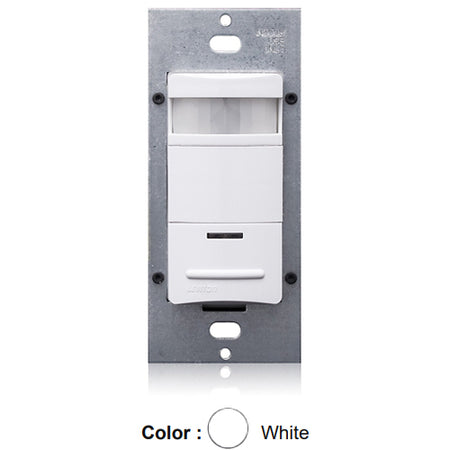

Leviton ODS10-I3W, Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor, Commercial Grade, Single-Pole, 347V Only Model, 180° Field-of-View, 2100 Sq.Ft. Coverage, White
Regular price
$89.58
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor, PIR wall switch. 347VAC. 180d view with blinders. Adjustable time delay between 30sec-30min. Ivory. CEC Title 24 compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | White |
| Voltage | 347 VAC |
| Frequency | 50/60Hz |
| Load Rating |
Incandescent: 3470W @ 347V Fluorescent: 3470W @ 347V Motor: 1/4HP @ 347V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Small offices, Conference rooms, Lounges, Classrooms |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Line-Black , Load-Blue, Ground-Green |
| Certifications | UL, CSA, FCC |
| Warranty | 5-Year Limited |
