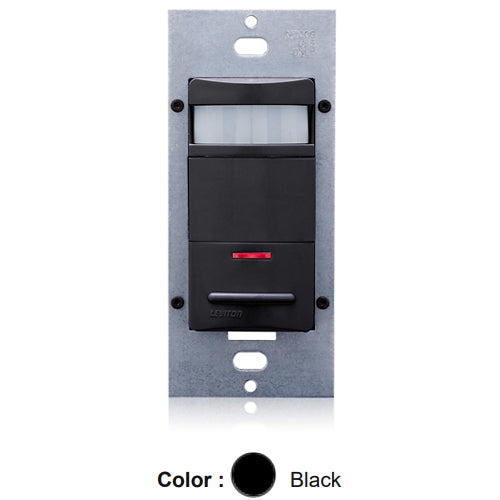

Leviton ODS10-IDE, Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor, Commercial Grade, For 60Hz AC only, 120/277V, 180° Field-of-View, 2100 Sq.Ft. Coverage, Black
Regular price
$84.03
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor, PIR, AutoON/AutoOFF (ManualON/AutoOFF selectable) Lighting Control, Vandal resistant, Manual Wall Switch. Robust Single Latching 10A Relay, No-Neutral wire required, 120/277VAC, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side), Adjustable time delay between 30s-30m, Light Sensor (Photocell) included for Ambient Light Hold-Off feature. CEC Title 20/24 Compliant, UL Listed, RoHS Compliant, Wall plate sold separately.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | Black |
| Voltage | 120/277 VAC |
| Frequency | 60Hz |
| Load Rating | Incandescent: 800W @ 120V. Fluorescent: 1200VA @ 120V, 2700VA @ 277V. For 60Hz AC only. Motor: 1/4HP @ 120V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Small offices, Conference rooms, Lounges, Classrooms |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Line-Black, Load-Blue, Ground-Green, No Neutral required |
| Certifications | UL, CSA, ASHRAE 90.1, Title 24, NOM |
| Warranty | 5-Year Limited |
