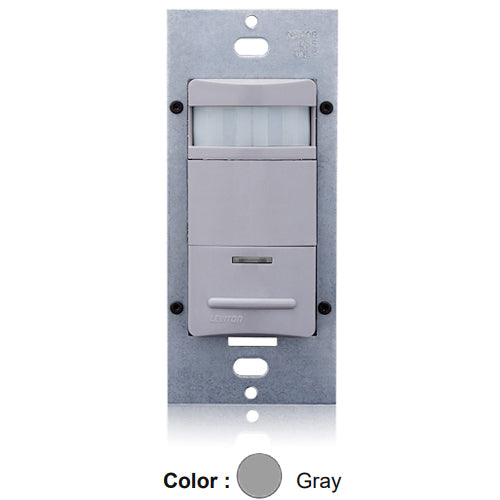

Leviton ODS15-IDG, Decora Wall Switch Passive Infrared (PIR) Occupancy Sensor with Self-Adaptive Technology, Commercial Grade, 120/277VAC, 180° Field-of-View, 2100 Sq.Ft. Coverage, Gray
Regular price
$106.56
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor, PIR, Wall Switch/Wall Box, Lighting Control, Single Relay, Photocell Controlled, Low profile, 180 degree field of view, 2100 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 50/60Hz, AutoOn/ManualON selectable, CEC Title 20/24 Compliant, UL Listed, RoHS Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Relay Type | Single Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2100 Sq. Ft |
| Pattern | 180° |
| Color | Gray |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating |
Incandescent: 1800W @ 120V. Fluorescent: 1800VA @ 120V, 4000VA @ 277V. Motor: 1/4HP @ 120V |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83''(47mm), Install Depth 1.35''(34.4mm), Install Height 2.60''(66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Small offices, Private Restrooms, Storage areas, Conference rooms, Heavier loads, Lounges, Classrooms |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Wiring | Line-Black, Load-Blue, Ground-Green, No Neutral required |
| Certifications | UL, CSA, Title 24, NOM, FCC |
| Warranty | 5-Year Limited |
