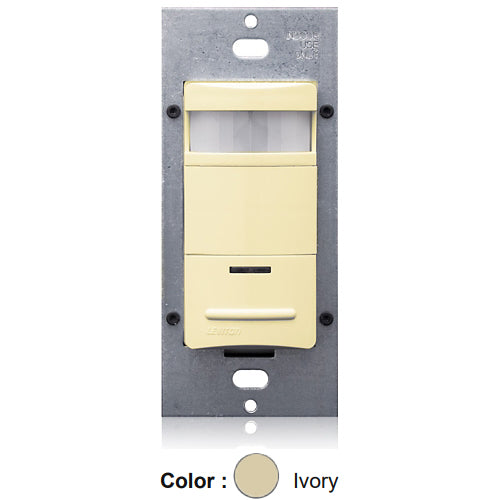

Leviton ODS15-TDI, Decora Wall Switch Passive Infrared (PIR) Vacancy Sensor, (Manual ON/Auto OFF) Lighting Control, Vandal Resistant, Robust Latching 15A Relay, Ivory

Vacancy Sensor, PIR, (ManualON/AutoOFF) Lighting Control, Vandal resistant, Manual 1 Pole Wall Switch. Robust Latching 15A Relay, No-Neutral wire required. Adjustable Service Switch: OFF/AUTO/ON (Keep in AUTO) 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side). Adjustable time delay (in Adapting mode: 30s, 5/10/20m, Non-Adapting mode: 5/10/20/30m), Walk-through features. Audible Beep Warn. Light Sensor (Photocell) included for Ambient Light Hold-Off feature. Energy Code Compliant. CEC Title 20/24 compliant. USMCA Compliant. Wall plate sold separately.

The Leviton Decora Wall Switch Passive Infrared (PIR) Vacancy Sensor (ODS15-TD) uses Passive Infrared (PIR) detection technology to monitor a room for vacancy through a segmented Fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and keeps the lights ON. The lights will remain ON as long as there is an occupant moving through the sensor zones.
