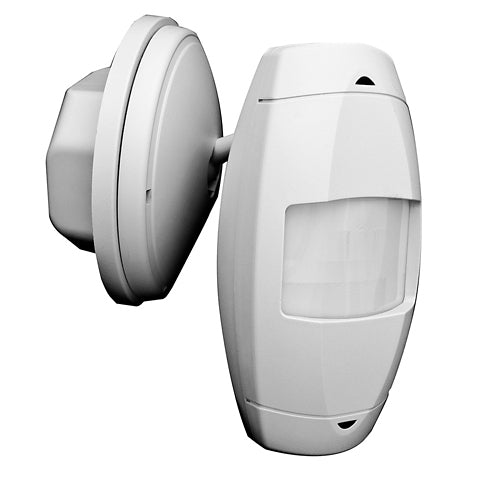

Leviton ODWLR-IDW, Line Voltage Wall Mount Passive Infrared (PIR) Long Range Occupancy Sensor with Power Base Combo, 120-277 VAC, 100FT x 14FT @ 10FT Height Coverage, White
Regular price
$240.67
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor OSWLR-I0W lighting control kitted with the Power Base OPB15 to complete a self contained line voltage sensor. (Occ Sensor: 24VDC, 10' Wall Mounted, Range to 100', PIR, (Power Base: Line Voltage to Low Voltage Power Base Adaptor. 15A, 120-277VAC), CEC Title 20/24 compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 100FT x 14FT @ 10FT Height |
| Color | White |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
| Load Rating | 15A Incandescent, Electronic or Magnetic Fluorescent Ballast. Motor: 3/4 HP @ 120V, 277V @ 2HP |
| Mounting Type | Wall Mount |
| Neutral Wire Connection | Required |
| Certifications | CSA, UL |
