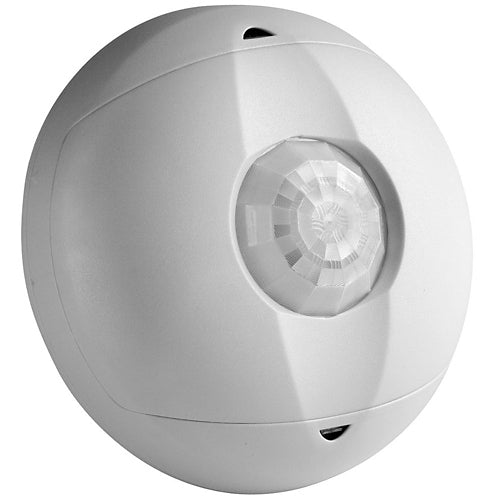

Leviton OSC04-I0W, Passive Infrared (PIR) Ceiling Mount Occupancy Sensor, 24 VDC, 450 Sq.Ft. Coverage, 360 Degree, Off-White
Regular price
$173.86
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor lighting control, Ceiling Mounted, PIR, 24VDC, 10mA power consumption, 450 sq ft, 360 deg (major motion: 24' diameter, minor motion: 10' diameter), red LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. USMCA compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 450 Sq. Ft |
| Pattern | 360° |
| Color | Off-White |
| Voltage | 24 VDC |
| Power Consumption | 10mA |
| Mounting Height (Ft.) | 8-10 FT |
| Mounting Type | Ceiling Mount |
| Certifications | Title 24, UL |
