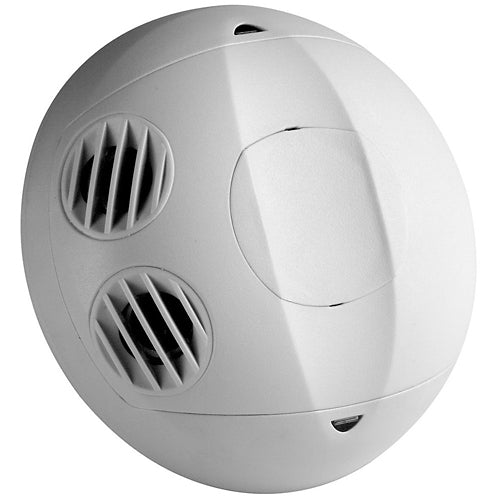

Leviton OSC05-U0W, Ultrasonic Ceiling Mount Occupancy Sensor, 24 VDC, 40kHz, 500 Sq.Ft. Coverage, 180 Degree, Off-White
Regular price
$128.85
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor lighting control, Ceiling Mounted, Ultrasonic only, 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: 23'Lx23'W, minor motion 17'Lx17'W), green LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Ultrasonic |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 500 Sq. Ft |
| Pattern | 180° |
| Color | Off-White |
| Voltage | 24 VDC |
| Frequency | 40kHz |
| Power Consumption | 25mA |
| Mounting Height (Ft.) | 8-10 FT |
| Mounting Type | Ceiling Mount |
| Certifications | Title 24, UL |
