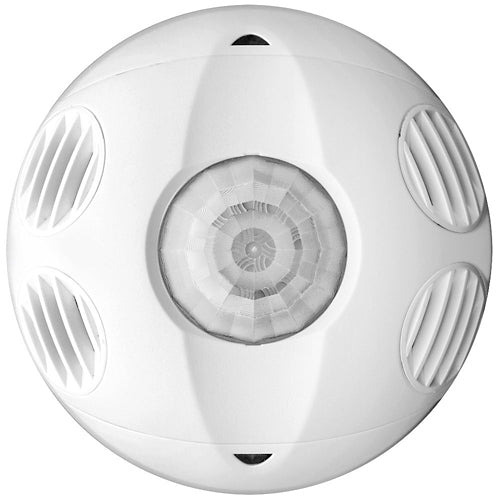

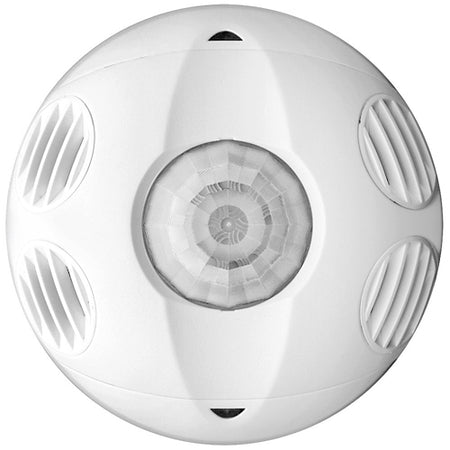

Leviton OSC10-RMW, Multi-Technology (PIR/US) Ceiling Mount Occupancy Sensor with Isolated Relay, 24 VAC/DC, 40kHz, 1000 Sq.Ft. Coverage, 360 Degree, White
Regular price
$329.55
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 1000 sq ft, 24VAC/VDC, Multi-Technology, 1A 30VAC/DC Isolated Relay, Extra Mid-Range Lens Assembly (for mounting between 8'-20'), Title 24 Compliant, USMCA Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Relay Type | Isolated Relay |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 1000 Sq. Ft |
| Pattern | 360° |
| Color |
White
|
| Isolated Relay | 1A @ 30VAC/VDC |
| Voltage | 24VAC/VDC |
| Frequency | 40kHz |
| Power Consumption | 35mA |
| Mounting Height (Ft.) | Low-range lens (default, black) 8-12 feet - Mid-range lens (red) 12-20 feet |
| Mounting Type | Ceiling Mount |
| Size | Width 4.20'' (106.68mm), Depth 1.57'' (39.90mm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0% to 95% non-condensing |
| Application | Cafeterias, Classrooms, Computer rooms, Conference rooms, Day care centers, Stairwells, Workspaces, Executive, Open warehouses, Restrooms and private offices, Offices with cubicles |
| Certifications | Title 24, UL |
| Warranty | 5-Year Limited |
