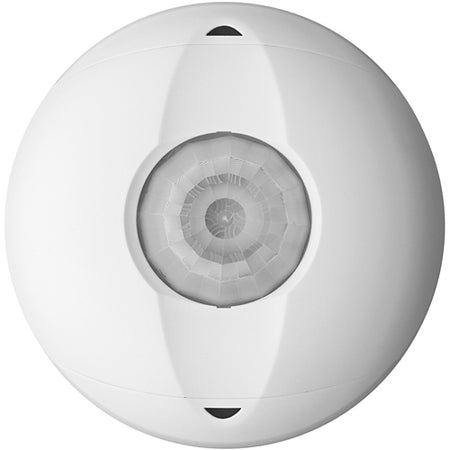

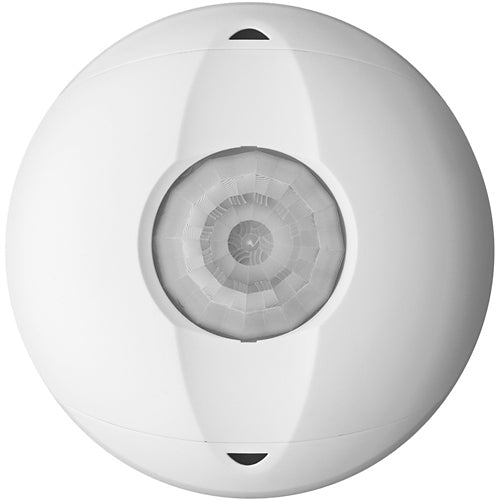

Leviton OSC15-RIW, Passive Infrared (PIR) Ceiling Mount Occupancy Sensor with Isolated Relay, 24 VAC/DC, 1500 Sq.Ft. Coverage, 360 Degree, White
Regular price
$169.89
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 1500 sq ft, 24VAC/VDC, PIR, 1A 30VAC/DC Isolated Relay, Extra Mid-Range Lens Assembly (for mounting between 8'-20'), Title 24 Compliant, USMCA Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Relay Type | Isolated Relay |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 1500 Sq. Ft |
| Pattern | 360° |
| Color | White |
| Isolated Relay | 1A @ 30VAC/VDC |
| Voltage | 24VAC/VDC |
| Power Consumption | 15mA DC - 30mA AC |
| Mounting Height (Ft.) | Low-range lens (default) 8-12 feet Mid-range lens 12-20 feet |
| Mounting Type | Ceiling Mount |
| Size | Width 4.20'' (106.68mm), Depth 1.57'' (39.90mm) |
| Application | Classrooms, Workspaces, Copy rooms, Hallways, Open areas, Private restrooms, Small offices, Conference rooms |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0% to 95% non-condensing |
| Certifications | Title 24, UL |
| Warranty | 5-Year Limited |
