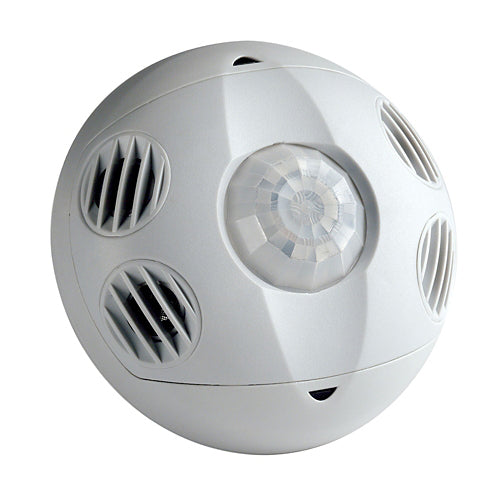

Leviton OSC20-M0W, Multi-Technology (PIR/US) Ceiling Mount Occupancy Sensor, 24 VDC, 32kHz, 2000 Sq.Ft. Coverage, 360 Degree, Off-White
Regular price
$187.28
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 30mA power consumption, 2000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S:64'Lx32'W, minor motion: U/S: 45'Lx23'W), red LED=PIR, green LED=U/S auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 2000 Sq. Ft |
| Pattern | 360° |
| Color | Off-White |
| Voltage | 24 VDC |
| Frequency | 32kHz |
| Power Consumption | 30mA |
| Output Power | 24 VDC active high logic control signal with short circuit protection |
| Mounting Height (Ft.) | 8-12 FT |
| Mounting Type | Ceiling Mount |
| Size | Width 4.20'' (106.68mm), Depth 1.57'' (39.90mm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0% to 95% non-condensing |
| Application | Cafeterias, Classrooms, Computer rooms, Conference rooms, Day care centers, Filing rooms, Workspaces, Open warehouses, Offices with cubicles, Open areas, Restrooms, Stairwells, Storage rooms, Executive, open and private offices |
| Certifications | Title 24, UL |
| Warranty | 5-Year Limited |
