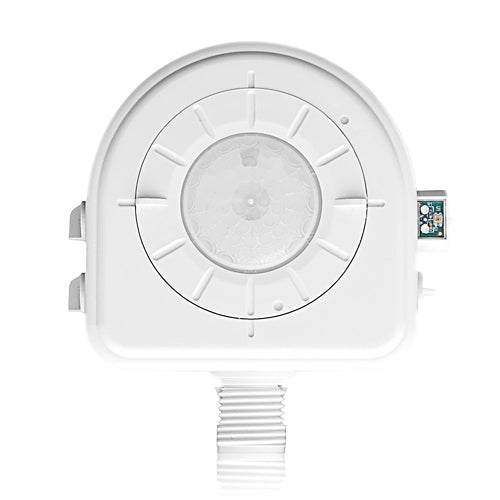

Leviton OSFHP-ILW, Fixture Mount High-Bay Passive Infrared (PIR) Sensor with Interchangeable Lenses and Light Sensor (Photocell), Low Voltage, 24 VDC, 20mA Input, White
Regular price
$137.84
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PIR Fixture Mount High Bay Occupancy Sensor lighting control with Light Sensor (photocell), Current Consumption: 20mA, 24V, Title 24 Compliant, ASHRAE 90.1 Compliant.
| Product Type | Occupancy Sensor and Photocell |
| Sensor Technology | Passive Infrared (PIR) and Photocell |
| Sensor Type | Occupancy and Photocell |
| Time Delay | 30s-30m |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 8-40 FT |
| Pattern | 360° |
| Color | White |
| Voltage | 24 VDC |
| Frequency | 50/60Hz |
| Commissioning | Manual |
| Load Rating | Fluorescent Ballasts: 800VA @ 120VAC Ballast 1000VA @ 230VAC Ballast 1200VA @ 277VAC Ballast 1500VA @ 347VAC Ballast 2000VA @ 480VAC Ballast; Motor: 1/4 HP Load @ 120V; Compatible with Electronic and Magnetic Ballasts, Electronic and Magnetic Low-Voltage Transformers. |
| Mounting Type | Fixture Mount |
| Sensor Mounting Configuration | External |
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Red, Neutral-White |
| Size | Height 4.44'' (112.78mm), Width 4.34'' (110.24mm), Depth 1.58'' (40.13mm) |
| Environment | Indoor |
| Relative Humidity | 0% to 90% non-condensing |
| Application | Warehouses, Manufacturing facilities, Production, Industrial areas, High ceiling applications |
| Certifications | CSA, UL, Title 24 |
| Warranty | 5-Year Limited |
