Leviton OSFHS-ITW, Surface Mount High-Bay Passive Infrared (PIR) Occupancy Sensor, Indoor, 120/277/347 VAC, White
Regular price
$101.84
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

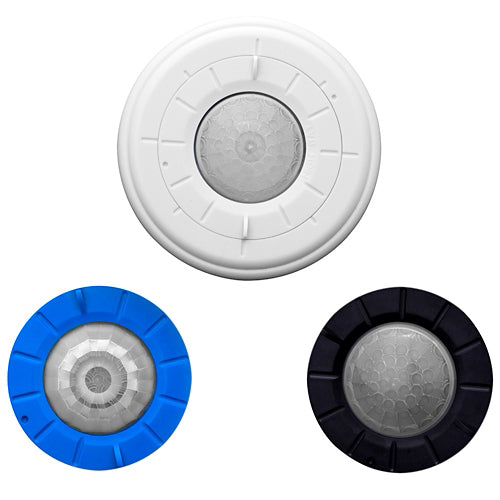

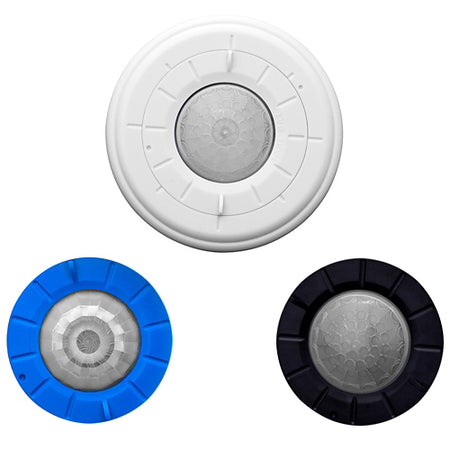

PIR Surface/Recess Mount High Bay Occupancy Sensor, Interchangeable lenses; 360 Degree High Bay, Aisle and, 360 Degree Low Bay Lenses, 50/60Hz, White, Title 24 Compliant, ASHRAE 90.1 Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 8-40 FT |
| Pattern | 360° |
| Color | White |
| Voltage | 120/277/347 VAC |
| Frequency | 50/60Hz |
| Commissioning | Manual |
| Load Rating | 800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, Motor: 1/4 HP Load @ 120V |
| Construction | High-impact, injection molded plastic housing |
| Mounting Type | Surface Mount |
| Sensor Mounting Configuration | External |
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Red, Neutral-White |
| Size | Height 1.57'' (40mm), Width 3.62'' (92mm) |
| Environment | Indoor |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Warehouses, Manufacturing facilities, Production, Industrial areas, High ceiling applications |
| Certifications | CSA, UL, Title 24 |
| Warranty | 5-Year Limited |
