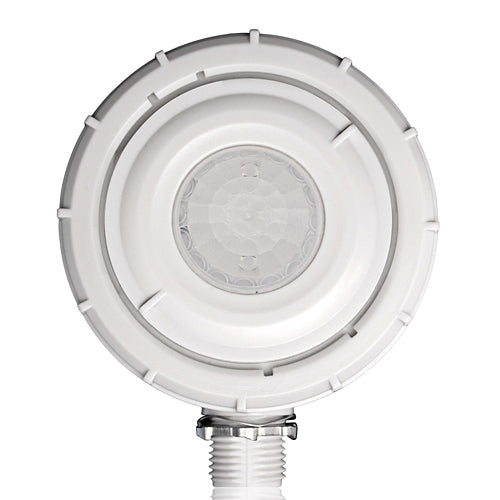

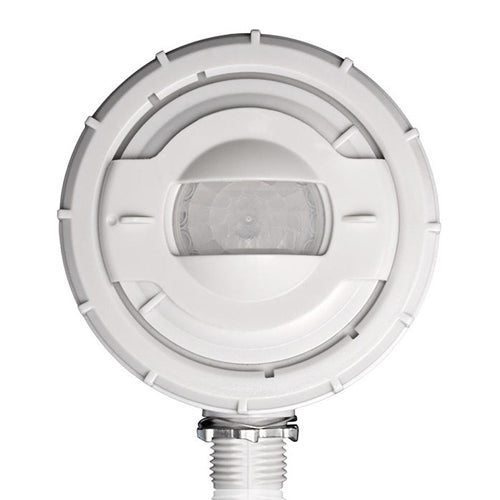

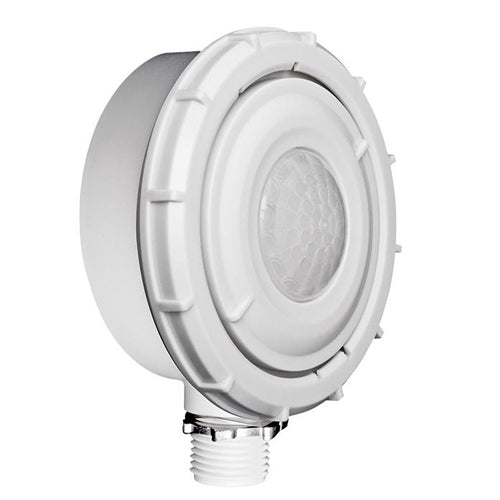

Leviton OSFHW-CTW, Fixture Mount High-Bay Passive Infrared (PIR) Wet Location Sensor with Two Interchangeable Lenses, 120/277/347 VAC, White
Regular price
$95.52
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Fixture Mount PIR High Bay Wet Location External Occupancy Sensor lighting control, 7.5 inch wire lead length, interchangeable adjustable 360 degree low-bay (8FT-20FT), and high-bay (20FT-40FT) lenses, blue, aisle mask.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Grade | Commercial |
| Coverage (Sq.Ft.) | Up to 40 FT |
| Pattern | 360° |
| Color | White |
| Voltage | 120/277/347 VAC |
| Frequency | 50/60Hz |
| Commissioning | Manual |
| Load Rating | 800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, Motor: 1/4 HP Load @ 120V |
| Construction | High-impact, injection molded plastic housing |
| Mounting Type | Fixture Mount |
| Sensor Mounting Configuration | External |
| Neutral Wire Connection | Required |
| Wiring | Line-Black, Load-Red, Neutral-White |
| Size | Height 4.75'' (120.65mm), Width 3.75'' (95.25mm) |
| IP Rating | IP65 |
| Environment | Wet |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Wet location, Supermarket meat departments, food processing plants, parking garages, high ceiling applications |
| Certifications | CSA, UL, Title 24 |
| Warranty | 5-Year Limited |
