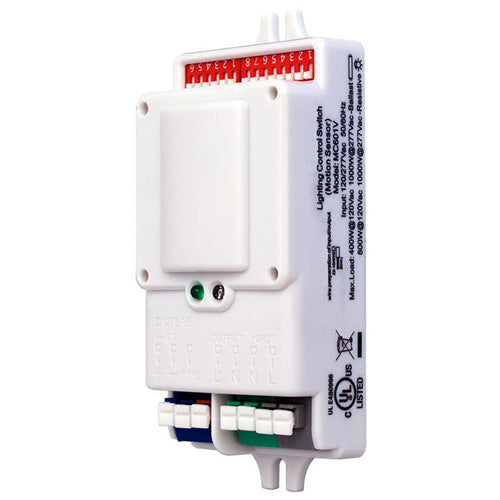

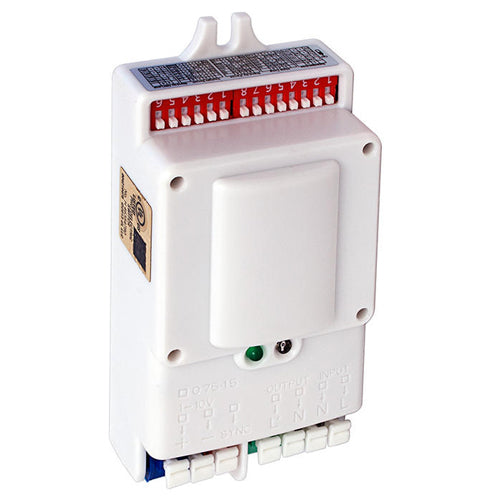

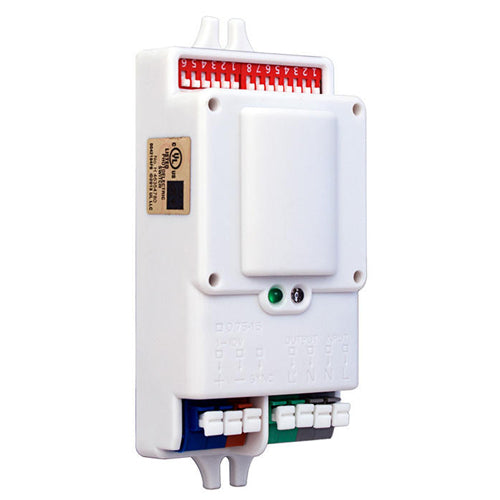

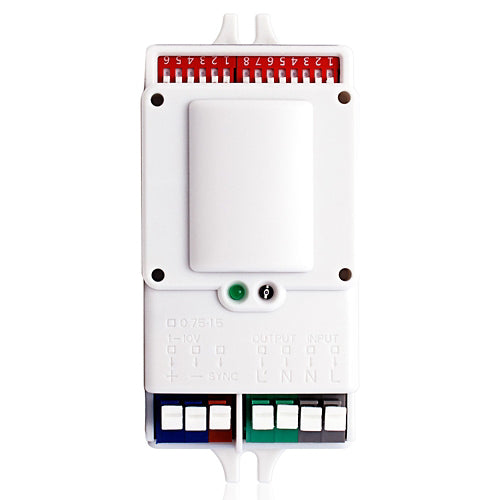

Leviton OSM3D-DDW, 0-10V Dimming High Frequency Microwave Occupancy Sensor, 150° Wall / 360° Ceiling Detection, 120-277 VAC, White
Regular price
$105.84
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Automatic switching or dimming
- Built-in daylight sensor
- Designed to detect movement behind low-density fixture materials or behind objects made of plastic or glass
- The sensor’s compact size allows it to easily fit in most luminaires
- LED lighting compatible
- Detection area, time delay and daylight threshold can be set via sensor DIP switch
- Wide detection area — range up to 52 feet
- Mounting height up to 49 feet
- Hold times range from 5 seconds to infinity
- 150° wall detection, 360° ceiling detection
- 5.8 GHz high frequency microwave
- Press-in terminal for easy wiring
- Surface or base mounting — can be hidden from view
| Product Type | Occupancy Sensor |
| Sensor Technology | Microwave |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Switch Type | Single-Pole |
| Color | White |
| Voltage | 120-277 VAC |
| Coverage (Sq.Ft.) | 1664 |
| Pattern | Wall: 150° Ceiling: 360° |
| Frequency | 50/60Hz |
| Load Rating | 120V @ 400W; 220-240V @ 800W; 277V@ 1000W |
| Mounting Type | Surface Mount or Base Mount |
| Mounting Height (Ft.) | Up to 40 FT |
| Neutral Wire Connection | Required |
| IP Rating | IP20 |
| Size | Height 3.68'' (93.5mm), Width 1.77'' (45mm), Depth 1.12'' (28.5mm) |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Walls or fixtures including wall sconces and wall packs, Cafeterias, Open office cubicles, Warehouses, Conference rooms, Any space used by a multi-tech sensor |
| Warranty | 5-Year Limited |
