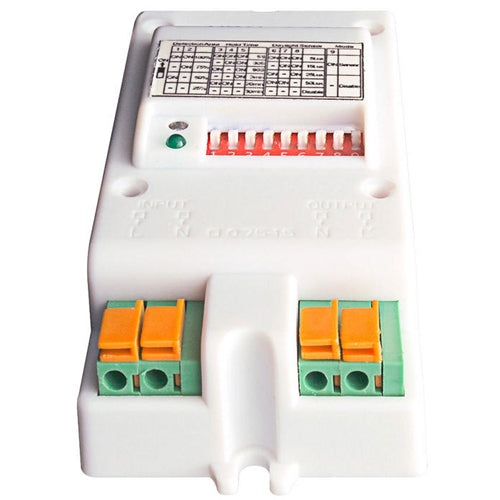

Leviton OSM3D-V1W, High Frequency Microwave Occupancy Sensor, 150° Wall / 360° Ceiling Detection, 120-277 VAC, White
Regular price
$105.17
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Automatic switching based on motion and ambient light level
- Zero crossing detection circuitry — protects the sensor against inrush current when switching
- LED lighting compatible

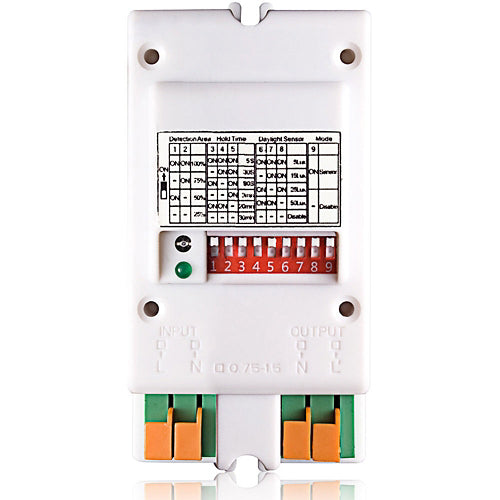

- Detection area, time delay and daylight threshold can be set via sensor DIP switch
- Hold times range from 10 seconds to 30 minutes
- 150° wall detection, 360° ceiling detection
- 5.8 GHz high frequency microwave
- 4-pole press-in terminal for easy wiring
- Surface or base mounting — can be hidden from view
| Product Type | Occupancy Sensor |
| Sensor Technology | Microwave |
| Sensor Type | Occupancy |
| Switch Type | Single-Pole |
| Time Delay | 10s-30m |
| Grade | Commercial |
| Color | White |
| Voltage | 120-277 VAC |
| Coverage (Sq.Ft.) | 1664 |
| Pattern | Wall: 150° Ceiling: 360° |
| Frequency | 50/60Hz |
| Load Rating | Tungsten: 800 W @ 120VAC, Electronic Driver/Ballast: 1000VA @ 120VAC, Driver: 1200VA @ 277VAC |
| Mounting Type | Surface Mount or Base Mount |
| Mounting Height (Ft.) | Up to 32 FT |
| Neutral Wire Connection | Required |
| IP Rating | IP20 |
| Size | Height 3.2'' (82mm), Width 1.73'' (44mm), Depth 1.05" (26.84mm) |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Garages, Warehouses, Metal Walls or Fixtures Including Wall Sconces and Wall Packs |
| Warranty | 5-Year Limited |
