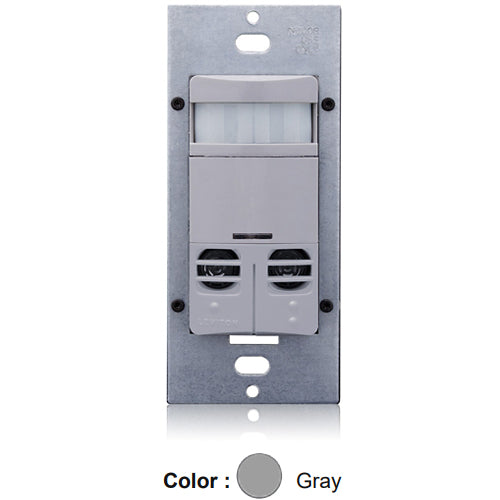

Leviton OSSMD-GAG, Decora Dual-Relay Wall Switch Multi-Technology (PIR & US) Occupancy Sensor, Commercial Grade, 120-277VAC, No Neutral Wire Required, 2400 Sq.Ft. Coverage, Gray
Regular price
$289.22
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
No neutral, dual relay, multi-tech occupancy sensor, 120-277v; 50/60Hz, CEC Title 20/24 compliant. Made in USA with globally sourced components.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Relay Type | Dual Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole, Dual Relay |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 Sq. Ft |
| Pattern | 180° |
| Color | Gray |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Primary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent: 1200VA @ 120V 2700VA @ 277V; Incandescent: 800W @ 120V Secondary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent: 800VA @ 120V 1200VA @ 277V; Incandescent: 800W @ 120V Motor: 1/4 HP |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83'' (47mm), Install Depth 1.35'' (34.4mm), Install Height 2.06'' (66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching |
| Wiring | Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) Secondary Relay: No. 16 AWG isolated contact leads: (2) Red |
| Certifications | CSA, Title 24, USMCA |
| Warranty | 5-Year Limited |
