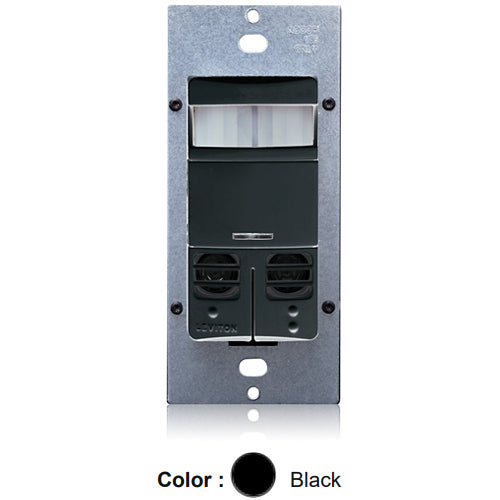

Leviton OSSMD-MAE, Decora Dual-Relay Wall Switch Multi-Technology (PIR & US) Occupancy Sensor, Commercial Grade, 120-277VAC, Neutral Wire Required, 2400 Sq.Ft. Coverage, Black
Regular price
$286.88
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dual Relay, Wall Box, Multi-Tech Occupancy Sensor, with a neutral wire. 120-277v; 50/60Hz, CEC Title 20/24 compliant. Made in USA with globally sourced components.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Relay Type | Dual Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole, Dual Relay |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 Sq. Ft |
| Pattern | 180° |
| Color | Black |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Primary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent: 1200VA @ 120V 2700VA @ 277V; Incandescent: 800W @ 120V Secondary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent: 800VA @ 120V 1200VA @ 277V; Incandescent: 800W @ 120V Motor: 1/4 HP |
| Size | Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.83'' (47mm), Install Depth 1.35'' (34.4mm), Install Height 2.06'' (66.2mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching |
| Wiring | Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) Secondary Relay: No. 16 AWG isolated contact leads: (2) Red |
| Certifications | CSA, Title 24, USMCA |
| Warranty | 5-Year Limited |
