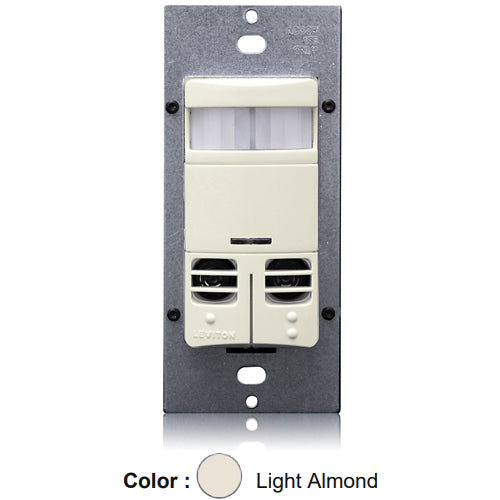

Leviton OSSMD-MDT, Decora Dual-Relay Wall Switch Multi-Technology Occupancy Sensor, Commercial Grade, 120/277 VAC, 180° Field-of-View, 2400 Sq.Ft. Coverage, Light Almond
Regular price
$286.88
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Dual relay multi-tech wall box occupancy sensor w/neutral wire lighting control, 120/277v; 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delay, Ambient Light Override, Self Adjusting, Field Configurable, USMCA Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Relay Type | Dual Relay |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole, Dual Relay |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 Sq. Ft |
| Pattern | 180° |
| Color | Light Almond |
| Voltage | 120/277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Primary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent 1200VA @ 120V, 2700VA @ 277V; Incandescent: 800W @ 120V Secondary Relay: LED:10A @ 120V 10A @ 277V; Fluorescent: 800VA @ 120V, 1200VA @ 277V; Incandescent: 800W @ 120V |
| Size | Height 4.06'' (103.12mm), Width 1.75'' (44.45mm), Depth 1.83'' (46.99mm), Install Depth 1.35'' (34.37mm), Install Height 2.06'' (67.26mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Wiring | Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) Secondary Relay: No. 16 AWG isolated contact leads: (2) Red |
| Certifications | ETL/cETL, Title 24, CSA, FCC, NOM |
| Warranty | 5-Year Limited |
