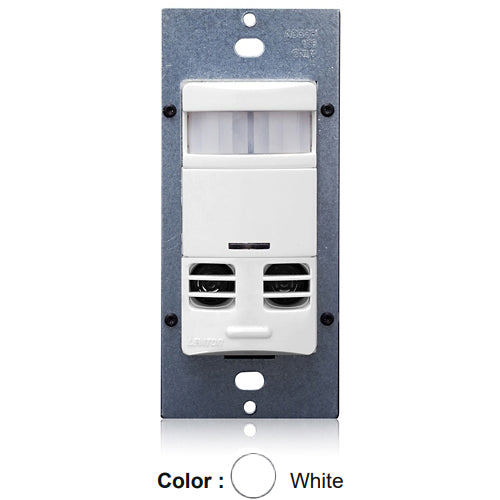

Leviton OSSMT-GTW, Decora Wall Switch Multi-Technology Vacancy Sensor with No Neutral, Commercial Grade, 120-277VAC, 180° Field-of-View, 2400 Sq.Ft. Coverage, White
Regular price
$97.47
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Manual ON multi-tech wall box vacancy sensor w/no neutral wire, 120-277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delays, Ambient Light Override, Self Adjusting, Field Configurable, White, USMCA Compliant.
| Product Type | Vacancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Vacancy |
| Wallplate | Order Separately |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 Sq. Ft |
| Pattern | 180° |
| Color | White |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
| Load Rating |
Incandescent/Tungsten: 800W @ 120V. Fluorescent: 1200VA @ 120V, 2700VA @ 277V. Motor: 1/4HP @ 120V |
| Size | Height 4.06'' (103.12mm), Width 1.75'' (44.45mm), Depth 1.85'' (46.99mm), Install Depth 1.35'' (34.37mm), Install Height 2.65'' (67.26mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Not Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Retrofit, Private and Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching |
| Operating Temperature | 0°C to 40°C |
| Wiring | Line-Black, Neutral-White, Load-Blue, Ground-Green |
| Certifications | ETL/cETL, IECC, Title 24, FCC, ASHRAE 90.1 |
| Warranty | 5-Year Limited |
