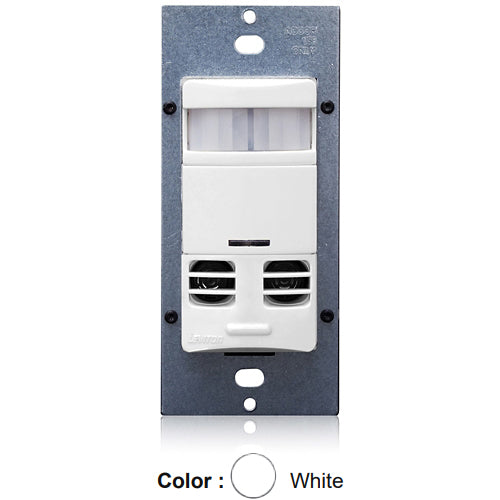

Leviton OSSMT-MAW, Decora Wall Switch Multi-Technology (PIR & US) Occupancy Sensor, Commercial Grade, 120-277VAC, Neutral Wire Required, 2400 Sq.Ft. Coverage, White

In stock
SKU: OSSMT-MAW
$220.94
Rated voltage
Colour
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Single Relay, Multi-Tech Wall Switch Occupancy Sensor, with a neutral wire 120-277v; 50/60Hz, CEC Title 20/24 compliant. Made in USA with globally sourced components.

Product Type Occupancy Sensor
Sensor Technology Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Sensor Type Occupancy
Time Delay 30s-30m
Switch Type Single-Pole
Grade Commercial
Coverage (Sq.Ft.) 2400 Sq. Ft
Pattern 180°
Color White
Voltage 120-277 VAC
Frequency 50/60Hz
Power Consumption U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW
Load Rating Incandescent/Tungsten: 800W @ 120V
Fluorescent: 1200VA @ 120V 2700VA @ 277V, 1500VA @ 347V
Motor: 1/4 HP @ 120V
Size Height 4.06'' (103.2mm), Width 1.75'' (44.4mm), Depth 1.85'' (46.99mm), Install Depth 1.35'' (34.37mm), Install Height 2.65'' (67.26mm)
Mounting Type Wall Switch
Neutral Wire Connection Required
Wiring Line - Black, Load - Blue, Ground - Green, Neutral - White
Made in USA Made in USA with globally sourced components
Operating Temperature 0°C to 40°C
Relative Humidity 20% to 90% non-condensing
Application Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way)
Certifications UL/cUL, Title 24, USMCA
Warranty 5-Year Limited
