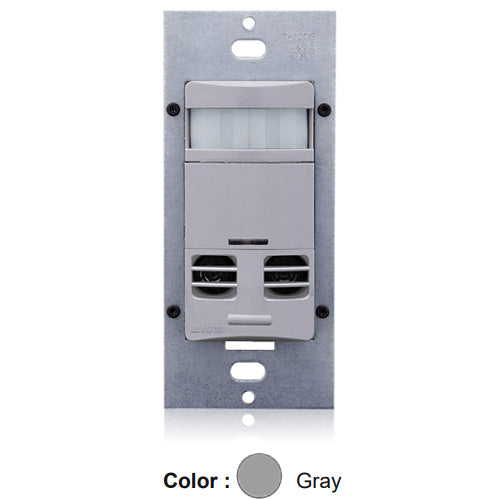

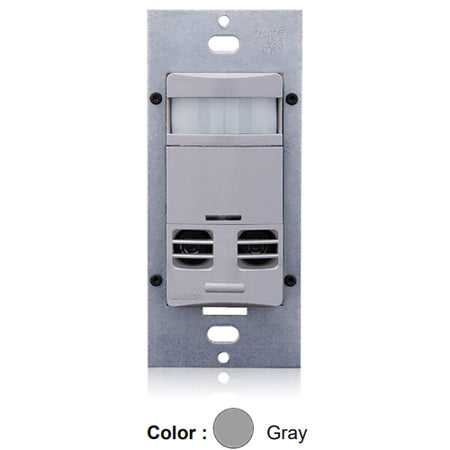

Leviton OSSMT-MDG, Decora Wall Switch Multi-Technology Occupancy Sensor with Self-Adaptive Technology, Commercial Grade, 120-277VAC, 180° Field-of-View, 2400 Sq.Ft. Coverage, Gray
Regular price
$95.20
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Multi-Tech wall box occupancy sensor w/neutral wire lighting control, 120-277v, 50/60Hz, CEC Title 20/24 Compliant, 30s-30m Time Delay, Ambient Light Override, Self Adjusting, Field Configurable, USMCA Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Time Delay | 30s-30m |
| Switch Type | Single-Pole |
| Grade | Commercial |
| Coverage (Sq.Ft.) | 2400 Sq. Ft |
| Pattern | 180° |
| Color | Gray |
| Voltage | 120-277 VAC |
| Frequency | 50/60Hz |
| Load Rating | Incandescent/Tungsten: 800W @ 120V Fluorescent: 1200VA @ 120V, 2700VA @ 277V, 1500VA @ 347V Motor: 1/4HP @ 120V |
| Size | Height 4.06'' (103.12mm), Width 1.75'' (44.45mm), Depth 1.85'' (46.99mm), Install Depth 1.35'' (34.37mm), Install Height 2.65'' (67.26mm) |
| Mounting Type | Wall Switch |
| Neutral Wire Connection | Required |
| Relative Humidity | 20% to 90% non-condensing |
| Application | Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way) |
| Operating Temperature | 0°C to 40°C |
| Wiring | Line - Black, Load - Blue, Ground - Green, Neutral - White |
| Certifications | UL/cUL, Title 24, USMCA |
| Warranty | 5-Year Limited |
