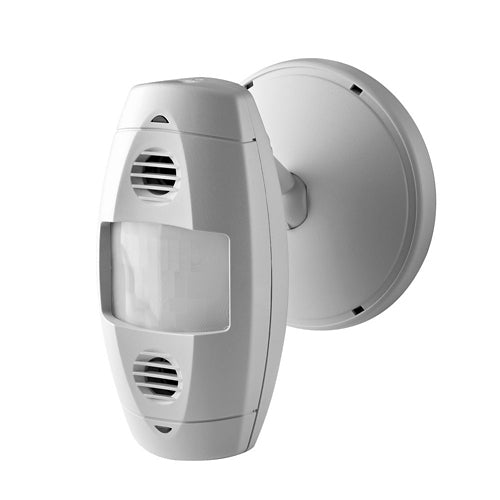

Leviton OSW12-M0W, Wall Mount Multi-Technology Occupancy Sensor, 24 VDC, 32kHz, 1200 Sq.Ft. Coverage, 115 Degree, Off-White
Regular price
$230.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Multi-Technology, Occupancy Sensor lighting control, Wall Mounted, 24VDC, 25mA power consumption, 1200 sq ft, 115 degree (major motion: PIR 68' radius, Minor motion: PIR 60'x30', U/S 32'x32'), Red LED=PIR, Green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel(rotatable), mounting height 8'-10', Patented Canopy Knuckle for versatile wall and ceiling mounting options, cUL/NOM/ANCE listed.
| Product Type | Occupancy Sensor |
| Sensor Technology | Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US) |
| Sensor Type | Occupancy |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 1200 Sq. Ft |
| Pattern | 115° |
| Color | Off-White |
| Voltage | 24 VDC |
| Frequency | 32kHz |
| Power Consumption | 25mA |
| Mounting Type | Wall Mount |
| Mounting Height | 8-10 FT |
| Certifications | UL |
