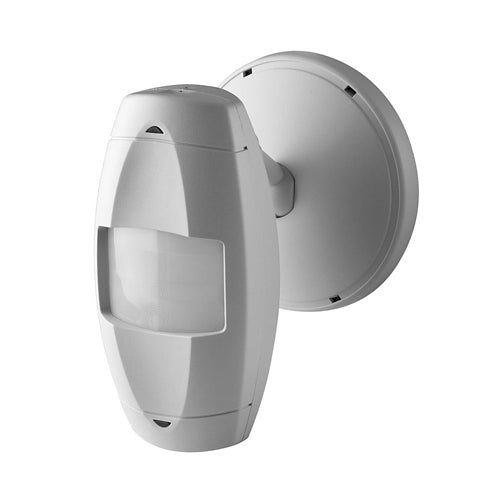

Leviton OSWLR-I0W, Wall Mount Passive Infrared (PIR) Long Range Occupancy Sensor, 24VDC, 100 FT. x 14 FT. @ 10 FT. Height Coverage, Off-White
Regular price
$214.64
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Long Range, PIR, Occupancy Sensor lighting control, Wall Mounted, 24VDC, 15mA power consumption, 10' mounting height, 100' length x 30' width (major motion only), Red LED=PIR, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', Patented Canopy Knuckle for versatile wall and ceiling mounting options, cUL/NOM/ANCE listed.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Feature | Aisle Long Range |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 100FT x 14FT @ 10FT Height |
| Color | Off-White |
| Voltage Type | Low Voltage |
| Voltage | 24 VDC |
| Power Consumption | 15mA AC, 30mA DC |
| Mounting Type | Wall Mount |
| Mounting Height (Ft.) | 8-10 FT |
| Size | Height 6.43'' (163.32mm), Depth 4.67'' (118.61mm), Sensor Width 2.80'' (71.12mm), Base Width 4.23'' (107.44mm) |
| Application | Cafeterias, Hallways, Loading docks, Open offices, Parking garages, Storage rooms, Warehouses, Workspaces, Vending rooms |
| Relative Humidity | 0% to 95% non-condensing |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Certifications | cUL/US Certified, Title 24, USMCA |
| Warranty | 5-Year Limited |
