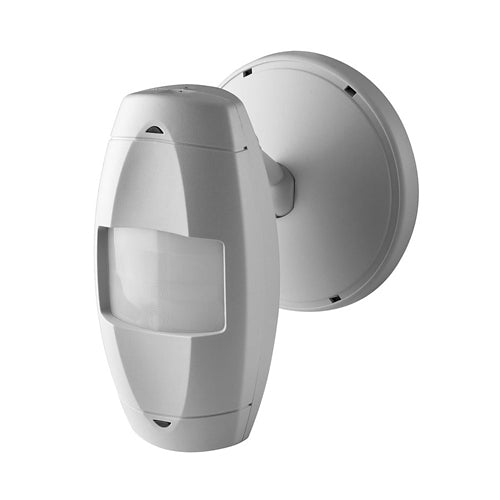

Leviton OSWWV-I0W, Wall Mount Passive Infrared (PIR) Wide View Occupancy Sensor, 24VDC, 2500 Sq.Ft. Coverage, Off-White
Regular price
$121.12
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Wide-View, PIR, Occupancy Sensor lighting control, Wall Mounted, 24VDC, 25mA power consumption, 2500 sq ft, 115 degree (major motion: 68' radius, Minor motion: PIR 58'x30'), Red LED=PIR, Green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', Patented Canopy Knuckle for versatile wall and ceiling mounting options, cUL/NOM/ANCE listed, RoHS Compliant.
| Product Type | Occupancy Sensor |
| Sensor Technology | Passive Infrared (PIR) |
| Sensor Type | Occupancy |
| Feature | Wide View |
| Grade | Commercial |
| Time Delay | 30s-30m |
| Coverage (Sq.Ft.) | 2500 |
| Pattern | 115° |
| Color | Off-White |
| Voltage Type | Low Voltage |
| Voltage | 24 VDC |
| Power Consumption | 25mA |
| Mounting Type | Wall Mount |
| Mounting Height (Ft.) | 8-10 FT |
| Application | Work Areas, Storage Areas, Store Rooms, Indoor Garages, Open Office Area with pendant fixtures, Multi-Purpose Areas, Cafeterias, Gymnasiums and Stairwells |
| Certifications | cUL/NOM/ANCE |
| Warranty | 5-Year Limited |
