Home » Leviton PCC1S-W, Line Voltage Ceiling Mount Photocell, Single Relay, Low Profile 1 Zone, Includes (1) Manual Switch and Emergency Input, 120-277VAC, 50/60Hz, White
Leviton

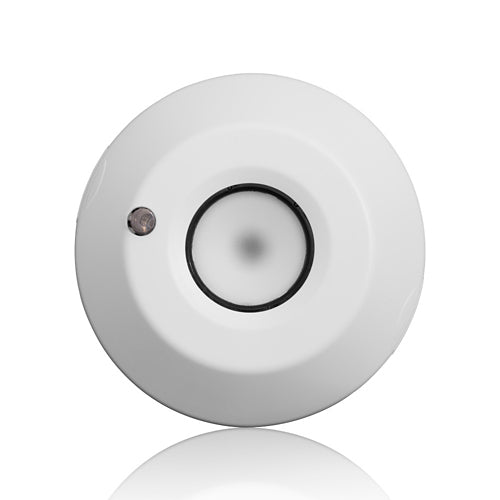

Leviton PCC1S-W, Line Voltage Ceiling Mount Photocell, Single Relay, Low Profile 1 Zone, Includes (1) Manual Switch and Emergency Input, 120-277VAC, 50/60Hz, White

In stock
SKU: PCC1S-W
$145.38
Rated voltage
Colour
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Line Voltage Ceiling Mount Photocell, Low profile 1 Zone, (1) relay rated 120-277VAC 50/60Hz. Includes (1) manual switch and emergency input. Set/Off, Delayed Off - Time: 5 Min, Demand Response: 75%, Title 24 Compliant, ASHRAE 90.1 Compliant.

  • Self-contained, open and closed loop daylight harvesting system
  • Includes two removable light pipes (flat or angled) for open and closed loop daylight harvesting applications
  • Leviton-exclusive auto-calibration eliminates the need for on-site configuring at a specific time of day
  • Industry exclusive “fail-safe” circuitry assures lights ON to meet life safety requirements (NFPA101)
  • Auto-detects momentary or maintained wall station for manual override control
  • Manual calibration — used for precise fine tuning and open loop applications
  • Low voltage contact closure uses: - Wall station — dimming/switching and daylight harvesting control - Emergency lighting — energy savings and safety - Demand response — meets energy codes - BMS integration — incorporate into whole building controls
  • Forced ON — user forces lights on for 2 hours through wall station, auto-exit to daylighting state, Forced OFF — user forces light off through wall station
  • Test Mode — fade rate is set to 30 seconds for 60 minutes and then product auto-exits to normal operation
  • Power-Up Restore — if manual switch is forced off after a power outage, the lights will remain off
  • LED Enable/Disable — flexibility for light sensitive requirements
  • Lamp Burn-In Mode — seasons fluorescent lights
Product Type Indoor Photocell
Color White
Voltage Type Line Voltage
Input Voltage 120-277VAC, 50/60Hz
Relative Humidity 10% to 90% non-condensing
Foot Candle Level 1-1,600 FC (10-16,000 LUX)
Operating Temperature 0°C to 40°C
Certifications cUL, RoHS
