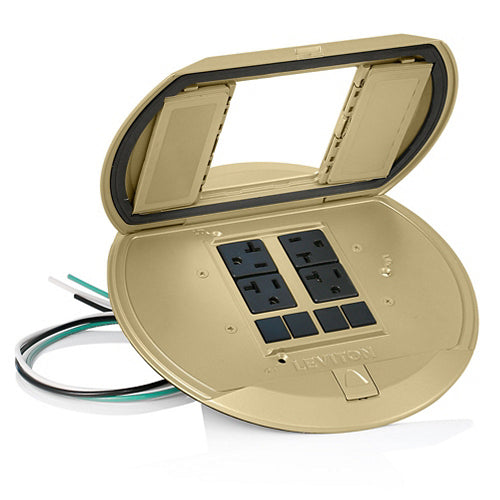

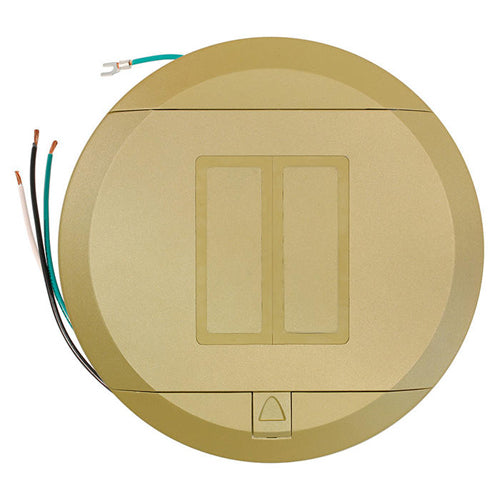

Leviton PT544-2B, Pre-Wired ''Door-in-Door'' Floor Cover, For Use with Leviton 5'' Poke Through Floor Box (PT500) Only, Brass
Regular price
$338.53
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
*Poke-Through covers are sold separately from the PT500 system
"Door-In-Door" Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Includes 2 Flip Lids That Fold Into The Main Lid To Hide All Hinges And Doors While In Use. Comes With Pre-Wired, Modular, 20A Receptacles and 4 QuickPort inserts; Also Includes Pre-Assembled Gasket And Mounting Screws, Brass
- Industry-exclusive design hides flip lids and allows the door to remain flush even when the outlets are in use; spring loaded button opens main lid
- Pre-wired with 4, 20A receptacles and 4 QuickPort inserts
- Only three cover assembly screws allow for easy installations and removals
- ADA-Compliant
- Available in nickel, brass, black or gray powder coat
| Device Type | Pre-Wired Cover |
| Type | Poke-Through |
| Feature | Pre-Wired Four 20A Simplex Receptacle Assembly |
| Color | Brass |
| Gasket | Pre-installed on Cover |
| Openings | Flip Lid; Doors store inside cover |
| Receptacle Compatibility | Up to 4 QuickPort Jacks |
| Dimensions | 8.38'' Diameter X 0.46'' High |
| Lead Length | 21'' |
| Wire Gauge | 12 AWG THHN Wire |
| Cover Material | Aluminum |
| Operating Temperature | -40°C to 70°C |
| Certifications | cULus |
| Warranty | 2-Year Limited |
